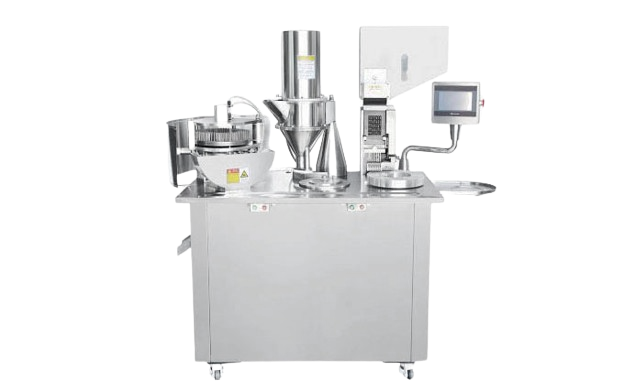

YOKO-BJ-III Touch Screen Control Capsule Filler Machine

•Semi automatic touch screen control •10,000-30,000 capsules/hr •Capsule 000#~5#

YOKO Pharma Capsule Filler
YOKO Pharma’s capsule filler machines are available in various sizes and models, depending on the specific needs of the pharmaceutical manufacturers. They can range from semi automatic to fully automatic capsule filling machines that can fill thousands of capsules per hour. Capsule fillers are designed to handle a variety of capsule sizes and types, including gelatin and vegetarian capsules. This professional pharmaceutical equipment uses specialized technology to ensure accurate dosing and prevent contamination of drug formulation during the filling process.


Semi Automatic Capsule Filling Machine for Sale
YOKO-BJ Series
YOKO-BJ Series is flexible for semi automatic powder or micro-granules encapsulation, accommodating all capsule sizes. Choose between an intuitive touchscreen or a reliable keypad control panel to suit your operational needs. With a convenient quick-change mold system, it offers a fast and user-friendly solution for manual operations.

YOKO-BJ-III-A semi automatic pill capsule filler machine is quite suitable for filling powder or granule ingredients into hard empty capsules. With a programmable control system, stepless transduction speed-shift, and electronic automatic counter, the operation of this machine becomes convenient and efficient.


Features of SED-BJ-III Semi Auto Capsule Filler

  • Easily change moulds
  • Precise hole insertion of empty capsules
  • Capsule caps are easily and quickly separated
  • Accurate dosage filling
  • Finished with tight sealed capsules
  • Made of Stainless steel material
  • In line with medical grade requirements


TECHNICAL DATA & Benefits

Model
SED-BJ-III
SED-BJ-III-A
SED-BJ-III-J
Capsule Size
00#-5#
000#-5#
00#~4#
Capacity (capsules/hr)
24,000
10,000-25,000
6,000-30,000
Power Supply
Custom made according to customer’s request
Vacuum Pump
40m³/hr
40m³/hr
40m³/hr
Capacity of Air Compressor
0.03m³/min
0.5-0.8Mpa
0.03m³/min
0.7Mpa
0.03m³/min
0.7Mpa
Overall Dimension(mm)
1530*748*1636
1140*700*1630
1350*780*1635
Weight (kg)
360
280
1000
