YOKO BIOPHARM Pill Counter
YOKO BIOPHARM offers a complete range of pill counting solutions — from semi-automatic to high-speed fully automatic systems — tailored to meet the diverse needs of pharmaceutical, nutraceutical, and contract manufacturing operations. Engineered for precision and flexibility, our machines handle tablets, capsules, and granules of all shapes and sizes, and integrate seamlessly with various packaging formats. Whether expanding capacity or streamlining production, YOKO BIOPHARM empowers your packaging line to run faster, smarter, and with greater reliability.
Automatic Pill Counter
YOKO-S Series
Economy series pill counter machine for counting and bottling of granular materials of various sizes and shapes.

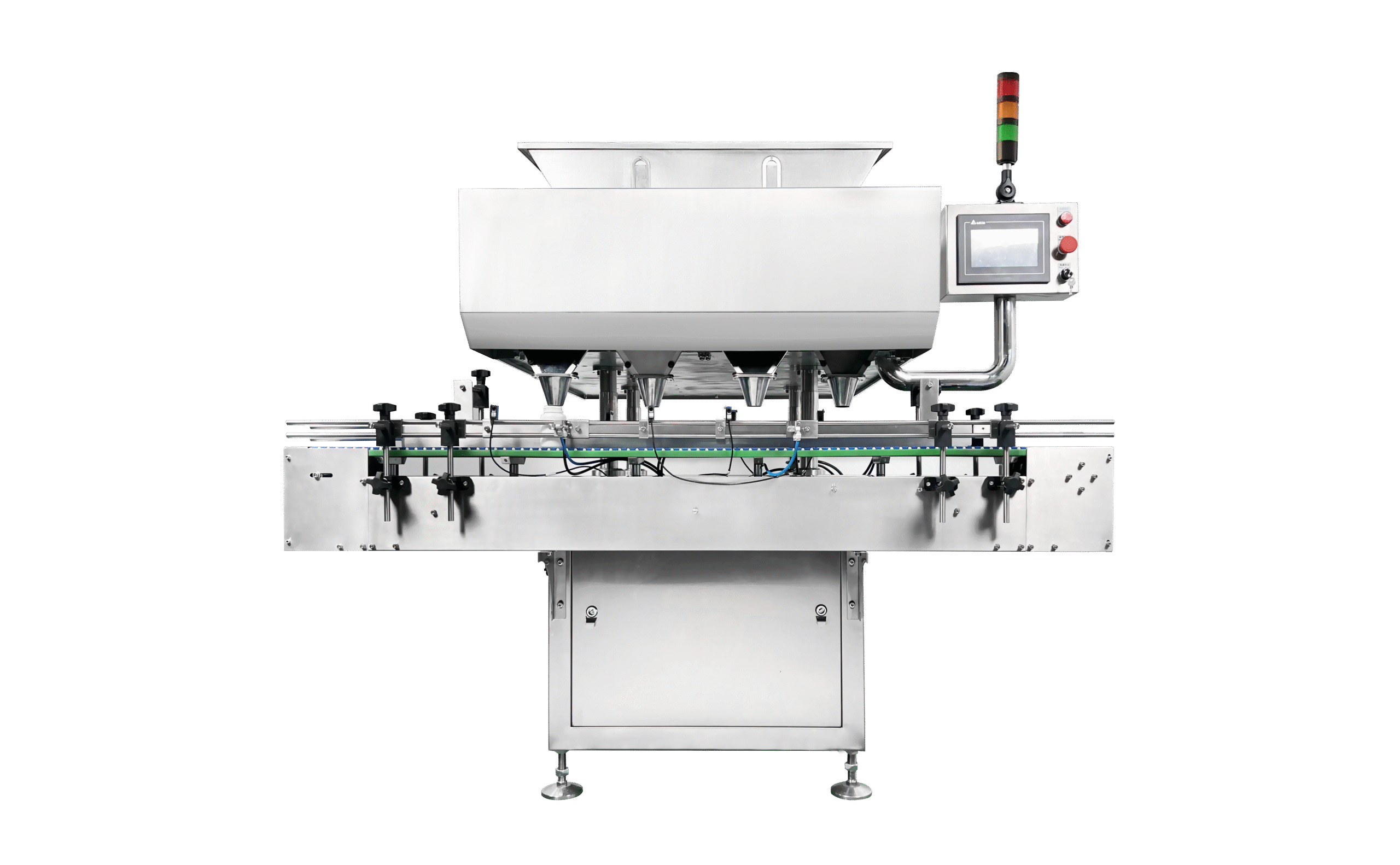

YOKO-48S pill bottle filling machine is a 48-channel counting machine. There are 48 vibrating “v”-shaped grooves on the vibrating plate of the worktable, which can work at the same time. The max counting speed can reach 180 bottles/min.
FEATURES
- Widely applicable: Used for tablets (including specially shaped tablets), capsules, gel pills (including specially shaped gels, transparent gels and opaque gels) and most solid granules.
- Patented: Bottle separation and switching device, no damage to the pills.
- Anti-dust: equipped with anti-dust sensor technology. Highly stable in heavily dusty situations and works with accuracy.
- The proprietary right technology for anti-disturbance: The counting signal will be dealt with in a special advanced way and communicated to the control system at high speed.
- Patented: Half vibration-filling hopper prevents pills from getting jammed (especially for bottles with smaller mouths).
- Separating device works in abnormal situations: Bottles will be rejected automatically.
- The feed-in and feed-out conveying system is integrated with the filler equipment.
- The empty bottle positioning: A missing bottle can be checked out for filling correctly.
- Touch screen: Dual language versions in Chinese & English. It can store a multi-group set of parameters; a multi-level password management system that helps protect the data.
- Easy to maintain: Operators can operate with simple training. It’s easy to remove, clean and change parts, and there is no need to use any professional tools.
- Sealing for dustproof, with a dust-remove box, reduces dust pollution. (Optional)
TECHNICAL DATA & BENEFITS
| |
| 1. Filled capsule(0-5#) 2. Soft Gelatin capsule 3. chewing gum 4. tablet 5. other solid object under machine range |
| |
| |
| 2-9999 pcs/bottle (adjustable) |
| Diameter: 30-100mm Height: 50-180mm |
| Pills with diameter of 20 or less are compatible with 0-5 capsules soft capsules with diameters of 5.5-22 plain tablets special-shaped tablets sugar-coated tablets |
| |
| Custom made according to customer’s request |
| |
| |
