ProductsYOKO-BJ-I Keypad Control Capsule Filler Machine
Capsules

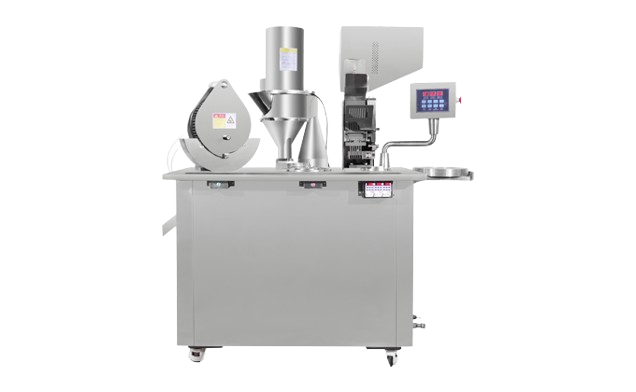

YOKO-BJ-I Keypad Control Capsule Filler Machine

•Semi automatic keypad control •10,000-30,000 capsules/hr •Capsule 000#~5#

Contact Us
YOKO Pharma Capsule Filler
YOKO Pharma’s capsule filler machines are available in various sizes and models, depending on the specific needs of the pharmaceutical manufacturers. They can range from semi automatic to fully automatic capsule filling machines that can fill thousands of capsules per hour. Capsule fillers are designed to handle a variety of capsule sizes and types, including gelatin and vegetarian capsules. This professional pharmaceutical equipment uses specialized technology to ensure accurate dosing and prevent contamination of drug formulation during the filling process.


Semi Automatic Capsule Filling Machine for Sale
YOKO-BJ Series
YOKO-BJ Series is flexible for semi automatic powder or micro-granules encapsulation, accommodating all capsule sizes. Choose between an intuitive touchscreen or a reliable keypad control panel to suit your operational needs. With a convenient quick-change mold system, it offers a fast and user-friendly solution for manual operations.

YOKO-BJ-I series semi automatic capsule filler machine is processed to fill pharmaceutical powders and granules into empty capsules. The semi automatic encapsulation machine automatically and efficiently completes the entire capsule insertion, separation, filling, and locking process. Designed specifically for small and medium-sized pharmaceutical companies, R&D institutions, and hospital preparation rooms, which is an ideal alternative to manual capsule filling.


Features of YOKO-BJ-I Capsule Filler Machine

  • Easy Operation: Keypad operation for simple control
  • Pneumatic-Electric Linkage: Variable frequency drive and pneumatic combined control
  • Intelligent System Configuration: Programmable Controller (PLC) for precise control
  • Quick Mold Change Technology: Cylindrical pin positioning reduces mold change time from 30 minutes to 5-8 minutes
  • Pharmaceutical-Grade Design: 304 stainless steel is used in areas contacting drug powder, meeting GMP requirements


TECHNICAL DATA & Benefits

Model
YOKO-BJ-I-A
YOKO-BJ-I-J
YOKO-BJ-I-S
Capsule Size
000#-5#
000#-4#
00#-5#
Capacity (pcs/hr)
10,000-22,500
10,000-30,000
10,000-25,000
Power Supply
Custom made according to customer’s request
Vacuum Pump
40m³/hr
40m³/hr
40m³/hr
Capacity of Air Compressor
0.03m³/min 0.7MPa
0.03m³/min 0.7MPa
0.05m³/min 0.7MPa
Machine Dimension (mm)
1450*670*1650
1140*700*1630
1250*700*1600
Weight (kg)
330
500
380
