ProductsYOKO-BJ-IV Touch Screen Control Capsule Filling Machine
Capsules

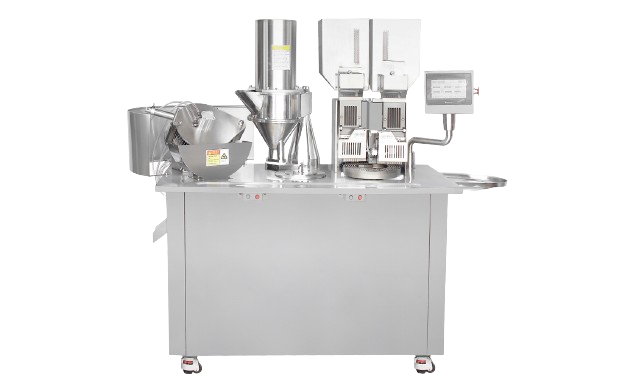

YOKO-BJ-IV Touch Screen Control Capsule Filling Machine

•Semi automatic touch screen control •10,000-40,000 capsules/hr •Capsule 000#~5#

YOKO Pharma Capsule Filler
YOKO Pharma’s capsule filler machines are available in various sizes and models, depending on the specific needs of the pharmaceutical manufacturers. They can range from semi automatic to fully automatic capsule filling machines that can fill thousands of capsules per hour. Capsule fillers are designed to handle a variety of capsule sizes and types, including gelatin and vegetarian capsules. This professional pharmaceutical equipment uses specialized technology to ensure accurate dosing and prevent contamination of drug formulation during the filling process.


Semi Automatic Capsule Filling Machine for Sale
YOKO-BJ Series
YOKO-BJ Series is flexible for semi automatic powder or micro-granules encapsulation, accommodating all capsule sizes. Choose between an intuitive touchscreen or a reliable keypad control panel to suit your operational needs. With a convenient quick-change mold system, it offers a fast and user-friendly solution for manual operations.

YOKO-BJ-IV Semi Automatic Capsule Filling Machine is used for different types of capsules filling with medicines and healthcare products such as powder, granules and pellets. Equipped with a double sowing station, which has obvious improvements over an old type machine, in terms of sowing speed, mold replacement, filling and maintenance.


Features of YOKO-BJ-IV High Capacity Capsule Filler

  • Comply with GMP standard
  • Adopts programmable control system & touch screen operation
  • Stepless frequency conversion and pneumatic control
  • Made of stainless steel to prevent corrosion and oxidation
  • Safety door device ensures the safety of operation


TECHNICAL DATA & Benefits

Model
YOKO-BJ-IV-A
YOKO-BJ-IV
Capsule Size
000#-5#
000#-4#
Capacity (capsules/hr)
20,000-40,000
10,000-35,000
Power Supply
Custom made according to customer’s request
Vacuum Pump
40m³/hr
/
Capacity of Air Compressor
0.03m³/min 0.7MPa
Overall Dimension(mm)
1300*700*1650
1140*780*1600
Weight(kg)
420
