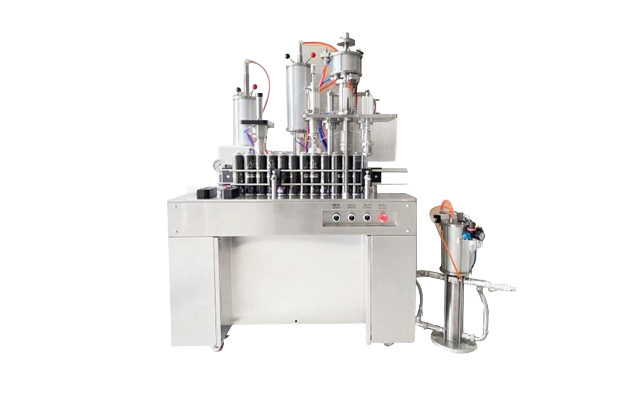

YOKO-BQW-F Semi Automatic Aerosol Spray Filling Machine

YOKO BIOPHARM

Aerosol Machine YOKO BIOPHARM aerosol filling machine is designed for the production of high-quality, sterile aerosols. The equipment for aerosol filling is a small-dose liquid filler, sealer, and small dose gas filler all in one station. The machine is very efficient, precise, and effective, which results in consistent outcomes.

SEMI AUTOMATIC

YOKO-BQW Series

YOKO-BQW aerosol spray filling machine is designed into semi-automatic type, suitable for filling various foods, medicines or corrosive liquids. It can complete liquid filling and capping at one time, meet GMP standards.

FEATURES

Comply with GMP requirements

The contact part of the whole machine is made of 316L material

High quality imported pneumatic components

Adopts slideway design at filling area, no can no filling

Equipped with an detection system at the bottle entry

Machine is customizable according to sample types

TECHNICAL DATA & Benefits

Model	YOKO-35BQW-F
Production Capacity (bottles/min)	25-35
Liquid Filling Volume (ml)	0-20/20-130 (customizable)
Gas Filling Volume	2-10g (LPG) 6-24g (r134a)
Liquid Filling Accuracy	±0.2ml
Working Pressure (MPa)	0.6-1.0
Max. Air Consumption (m³/min)	1.2
Applicable Aerosol Can Diameter (mm)	16-28
Applicable Aerosol Can Height (mm)	35-100

Application •Pain Relief Aerosol

•Skin Care Aerosol

•Disinfectants

•Air Freshener
