ProductsYOKO-BTB-G Semi Automatic Bottle Label Applicator
YOKO-BTB-G
Labeler

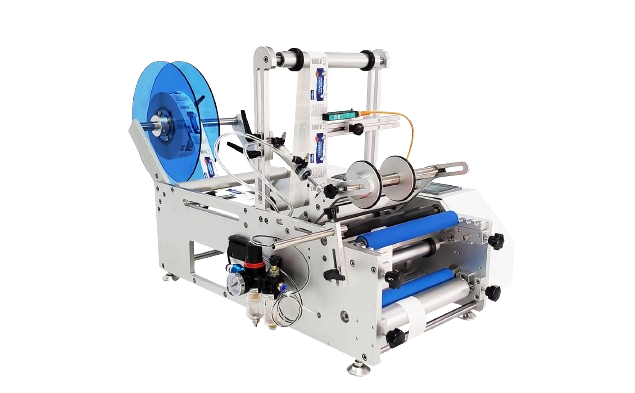

YOKO-BTB-G Semi Automatic Bottle Label Applicator

•900-1,800 bottles/hr •Bottle diameter 10-150mm •Labeling accuracy ±0.5mm

YOKO BIOPHARM
Labeler
YOKO BIOPHARM labelers apply labels to containers or outer packages. There are different types of labeling machines designed in automatic and semi-automatic for various applications and label formats, including bottle labeler for single or double sides, horizontal labeling machine, labelwrap-around labeler, shrink sleeve labeling machine and more.

SEMI AUTOMATIC

YOKO-BTB Series

YOKO-BTB-G semi automatic bottle label applicator is designed for small scale packaging, using foot switch or automatic sensing function to finish labeling steps.

FEATURES

  • PLC system controlling
  • Adopt high quality stainless steel and aluminum alloy
  • Equipped with photoelectric detector for automatic labeling
  • Color screen control interface, supports one-key settings
  • Easy adjustment of the pressing mechanism and product positioning slot position

TECHNICAL DATA & BENEFITS

Model
YOKO-BTB-G
Labeling Accuracy
±0.5mm
Labeling Speed (bottles/min)
15-30
Bottle Diameter (mm)
10150
Label Size (mm)
L20-300
W20-230
Dimension
(L*W*H mm)
950*560*520
Power Supply
220V/50Hz
Weight (kg)
35
