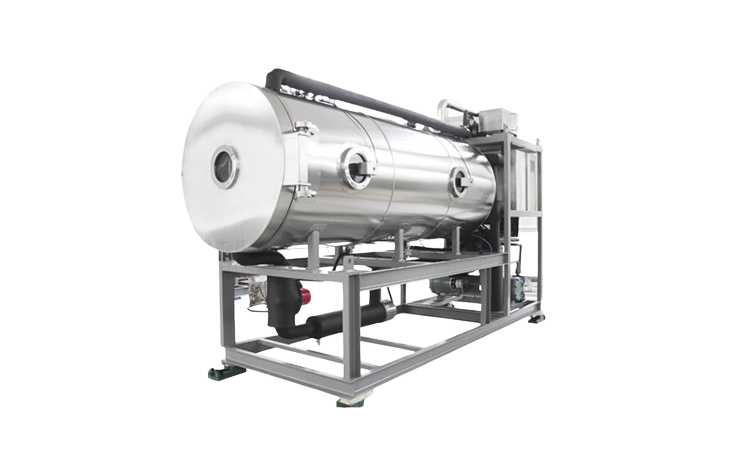

YOKO-DG-B Multi-function Vacuum Freeze Dryer Machine

•Tray area 3-151 ㎡ •7-23 blocks of loading layers •Max. temperature of shelf 80-90℃

Contact Us
YOKO BIOPHARM Freeze Dryer
YOKO BIOPHARM provides a diverse range of high-performance freeze dryer machines tailored to meet the needs of modern industries. Explore our best freeze dryer collection and find the perfect solution for your applications. With extensive experience in supplying laboratory and industrial freeze dryers, we specialize in serving the pharmaceutical, food, and chemical industries, ensuring reliability, efficiency, and top-notch quality.


Production Scale Commerical Freeze Dryer Machine
YOKO-DG Series
YOKO-DG is a multi-function commercial freeze drying equipment series to complete large scale freeze drying including types of food and pharmaceuticals, meeting the requirements of sterile production.


YOKO-DG-B series freeze dryer machine is designed according to vacuum container standards and can be used in the production and processing of food and pharmaceutical industries. The equipment can provide freeze drying with a practical area ranging from 3 to 151 m² (7-23 layers), equipped with a stable condensation and drying system. Cabinet design is mainly made of SUS304 stainless steel, which is easy to clean and has high maintenance efficiency.

FEATURES
  • All systems are comply with vacuum vessel design standards
  • Design with SUS304 tainless steel with ensurance of sterile condition
  • Strong load-bearing capacity of layers and cabinet without leakage
  • High-performance refrigeration compressor with multiple temperature and pressure protection functions
  • Environmentally friendly refrigerants that comply with the Montreal Convention are used
  • Two-stage rotary vane vacuum pump with high pumping speed is used
  • Vacuum degree can be automatically controlled according to the set value
  • Electric heating adopts PID energy regulation control, which is energy-saving and has stable temperature control
  • The control system adopts three-level user authority password management
  • The human-machine interface accurately displays various data and component working status
  • Freeze-drying process curve can be set arbitrarily
  • Intelligent remote control and diagnosis are possible

TECHNICAL DATA & Benefits

Model
YOKO-3DG(-50)-B
YOKO-3DG(-60)-B
YOKO-4DG-B
YOKO-5DG-B
YOKO-10DG(-50)-B
YOKO-10DG(-60)-B
YOKO-15DG-B
YOKO-20DG-B
YOKO-30DG-B
YOKO-35DG-B
YOKO-40DG-B
YOKO-50DG-B
YOKO-75DG-B
YOKO-100DG-B
YOKO-150DG-B
Total Usable Area of Shelves (㎡)
3
3
4
5
10
10
15
20.9
30
35.1
40.5
50
75
102
151
Number of Shelf
6+1
6+1
8+1
8+1
8+1
8+1
9+1
11+1
13+1
15+1
15+1
15+1
18+1
22+1
21+1
Max. Temperature of Shelf (℃)
80
80
80
80
80
80
80
80
80
80
80
80
90
80
80
Total Power
Custom made according to customer’s request
Compressed Air
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
≥40L/min
(P=0.5~0.8MPa)
Dimension
(L*W*H mm)
2500*1000*2200
2500*1000*2200
4000*1400*2100
4200*1400*2100
4500*1700*2030
4500*1700*2030
5200*2150*2400
6550*1980*2100
6000*2300*2600
6500*2200*2600
7300*2200*2600
8000*2300*2600
11500*2500*2600
10500*2476*2815
Chamber: 5600*2500*2800
Cold Trap: 6000*2500*2800
Unit: 4800*2280*2800
Approx. Total Weight (T)
2.5
2.5
4
4
6
6
7
10
10
9
10
13
20
20
30
Structure
Integral
Integral
Integral
Integral
Integral
Integral
Integral
Integral
Integral
Integral
Integral
Integral
Integral
Integral
Drying Chamber + Cold trap+ Unit

APPLICATION • Fruits and Vegetables • Gummy • Pet Food • Pharmaceuticals
