ProductsYOKO-DTB Automatic Positioning Round Bottle Labeler
YOKO-DTB
Labeler

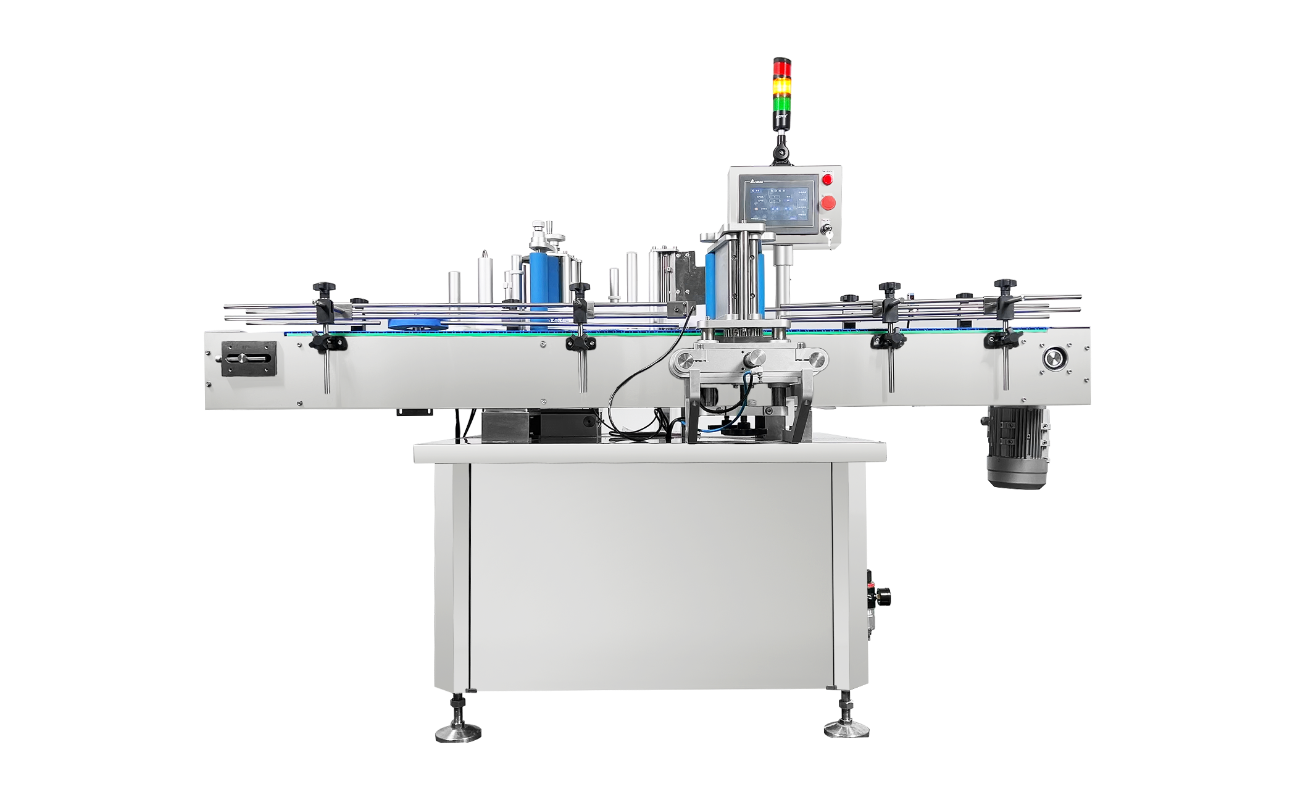

YOKO-DTB Automatic Positioning Round Bottle Labeler

•1,800-4,200 bottles/hr •Bottle diameter ≤100mm •Bottle height 40-180mm

Contact Us
YOKO BIOPHARM
Labeler
YOKO BIOPHARM labelers apply labels to containers or outer packages. There are different types of labeling machines designed in automatic and semi-automatic for various applications and label formats, including bottle labeler for single or double sides, horizontal labeling machine, labelwrap-around labeler, shrink sleeve labeling machine and more.

AUTOMATIC

YOKO-DTB Series
Designed for positioning labeling of round bottles.

YOKO-DTB round bottle labeler works automatically, finish accurate labeling by a positioning system. The labeler is applied for labeling of round bottles or other common cylindrical objects.

FEATURES

  • SUS304 material for machine body
  • Easy maintenance and remains in perfect condition
  • Equipped with a touch screen and PLC system
  • Ajustable labeling position to adapt different product sizes
  • Accurate detection by photoelectric sensor

TECHNICAL DATA & BENEFITS

Model
YOKO-DTB
Application
Round Plastic Bottle
Bottle Size
Diameter ≤100mm
Height: 40-180mm
Capacity (bottles/hr)
1800-4200
Label Requirement
Self-Adhesive Sticker Labels in Roll Form
Label Size
Width:15-120mm
Length: 23-250mm
Label Roll Size
Inner Diameter: 75mm
Outer Diameter: 350mm (Max.)
Compressed Air
0.6MPa
Voltage
AC220V 50Hz Single Phase
Power
Custom made according to customer’s request
Weight (kg)
220
Overall Dimension
(L*W*H mm)
1760*950*1400
