YOKO-EH-H Two-Dimensional Motion Mixing Machine For Powder

YOKO BIOPHARM

Mixing Machine

YOKO BIOPHARM delivers precise engineered industrial mixing systems designed to solve complex processes in the pharmaceutical, food and chemical sectors. Our portfolio covers the full spectrum of blending kinematics, including multi-axial 3D motion, convective diffusion, and high-intensity hydraulic shear. We specialize in optimizing the dispersion of powders, granules, and high viscosity matrices while eliminating centrifugal dead zones. Every system is built for mechanical integrity and process repeatability, offering the scalability needed to transition seamlessly from pilot scale trials to full scale industrial manufacturing.

Multi-Directional Motion Mixer

YOKO-EH Series

YOKO-EH two-directional mixer series applies a synchronized twin-shaft system to drive high velocity convective mixing. Optimized for free flowing powders and granules, this series ensures rapid, uniform dispersion through coordinated horizontal & vertical motion.

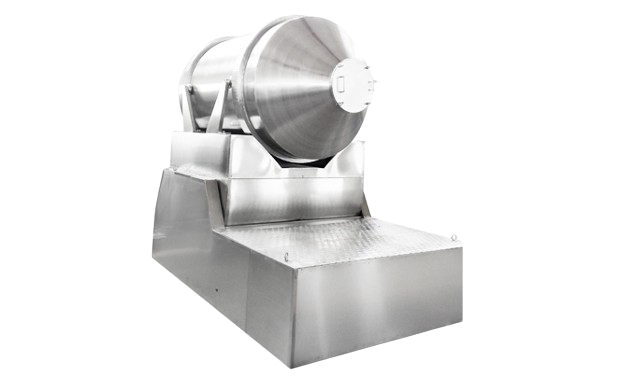

YOKO-EH-H two-dimensional mixer machine is mainly composed of three parts: the cylinder, the swing frame, and the support rollers. The rotating cylinder is mounted on the swing frame, supported by four rollers. The cylinder of the two-dimensional mixer can move in two directions at the same time, one is the rotation of the cylinder, and the other is swinging with the swing frame.

FEATURES

Full machine body adopts high-quality 304 stainless steel

The inner and outer walls of the drum mixer are precision polished, the surface is smooth and flat

No hidden corners of agitator mixer, cleaning easily

Noiseless during the working process

Precisely electrical control system

Adopts stainless steel butterfly valve to discharge materials without leakages

TECHNICAL DATA & Benefits

Model		YOKO-1000EH-H	YOKO-1500EH-H	YOKO-2000EH-H	YOKO-2500EH-H	YOKO-3000EH-H	YOKO-5000EH-H	YOKO-10000EH-H	YOKO-12000EH-H	YOKO-15000EH-H
Total Volume (L)		1000	1500	2000	2500	3000	5000	10000	12000	15000
Loading Volume (L)		500	750	1000	1250	1500	2500	5000	6000	7500
Loading Weight (kg)		350	550	750	950	1100	1800	3000	4000	5000
Overall Size (mm)	A	1500	1800	2000	2200	2400	2700	3200	3400	3500
	B	1390	1550	1670	1850	1910	2290	2700	2800	3000
	C	240	240	240	240	280	300	360	360	360
	D	850	980	1100	1160	1220	1440	1800	1910	2100
	M	2040	2340	2540	2760	2960	3530	4240	4860	5000
	H	2180	2280	2440	2600	2640	3000	4000	4200	4400
Power		Custom made according to customer’s request

APPLICATION

•Medicine Powder

•Bakery Ingredients

•Beverage Powder

•Daily Chemicals
