ProductsYOKO-FD-C Horizontal Continuous Bag Sealing Machine
YOKO-FD-C
Other Equipment

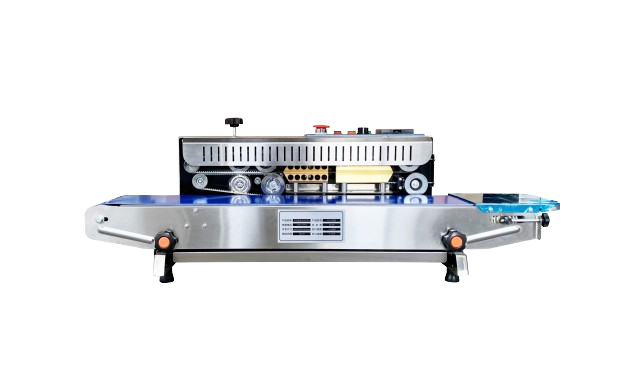

YOKO-FD-C Horizontal Continuous Bag Sealing Machine

•0-720 m/hr •Sealing width 6-12mm •Temperature range 0-300°C

YOKO BIOPHARM
Other Equipment

BAG RELATED
YOKO-FD Series
Semi automatic operation, completing continuous bag carrying, sealing and printing.

YOKO-FD-C continuous bag sealing machine operates by the special high-speed motor, able to complete the sealing of various single-layer or composite film bags continuously.

FEATURES
  • Available for continuous sealing work
  • Stepless speed regulation
  • Evenly heating and cooling
  • Equipped with emergency stop switch
  • Protective cover design ensures working safety

TECHNICAL DATA & Benefits

Model
YOKO-900FD-C
YOKO-1000FD-C
YOKO-1100FD-C
Sealing Speed (m/min)
0-12
0-12
0-12
Sealing Width (mm)
6-12
12
12
Temperature Range ()
0-300
0-300
0-300
Max. Conveyor Loading (kg)
3
3
3
Printing Category
steel wheel printing
Solid-ink printing
steel wheel printing
Power
Custom made according to customer’s request
Weight (kg)
23
25
30
Dimension (mm)
820*400*300
1060*470*380
1052*400*305

Application
•Pet Food Pouch
•Snack Bag
•Tea Bag
•Coffee Bag
