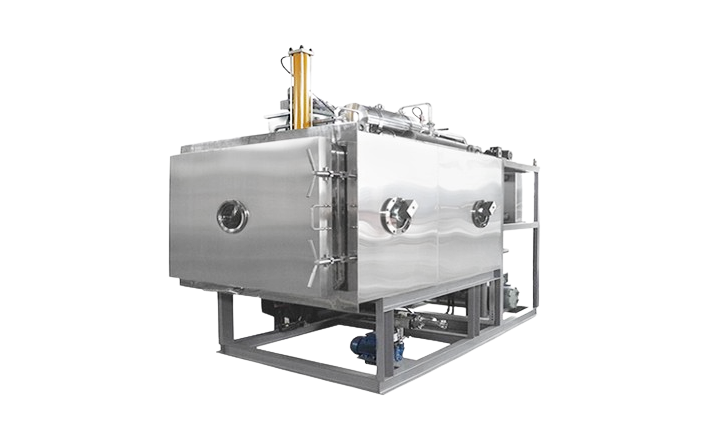

YOKO-FDG-B Large Pharmaceutical Freeze Dryer Lyophilizer

•Tray Area 1-51㎡ •5-18 blocks of loading layers •Max. temperature of shelf 80℃

Contact Us
YOKO BIOPHARM Freeze Dryer
YOKO BIOPHARM provides a diverse range of high-performance freeze dryer machines tailored to meet the needs of modern industries. Explore our best freeze dryer collection and find the perfect solution for your applications. With extensive experience in supplying laboratory and industrial freeze dryers, we specialize in serving the pharmaceutical, food, and chemical industries, ensuring reliability, efficiency, and top-notch quality.


Production Scale Commerical Freeze Dryer Machine
YOKO-FDG Series
YOKO-FDG series is specially designed for processing high efficient lyophilization in pharmaceutical industry, applicable to biological products, vaccines and other medicines requiring sterility or high purity.


YOKO-FDG-B series pharmaceutical freeze dryer is mainly suitable for freeze drying of heat-sensitive, unstable or long-term storage drugs and biological products, such as vaccines, blood products, protein products and other drugs. The whole machine meets the pharmaceutical grade production standards and is equipped with CIP and SIP cleaning systems to ensure the operating efficiency and product quality of the freeze dryer.


Features of YOKO-FDG-B Pharmaceutical Freeze Dryer

  • Polished stainless steel, ensure surface roughness and sterility requirements
  • Consistent with CGMP requirements
  • Safety latch lock system, interlock operation
  • Automatic and manual operation can change in any mode
  • High energy efficiency and temperature stability
  • Comply with FDA EU standards

TECHNICAL DATA & Benefits

Model
YOKO-1FDG-B
(CIP+SIP)
YOKO-1.1FDG-B
(CIP+SIP)
YOKO-3FDG-B
(with hydraulic)
YOKO-3FDG-B
(CIP+SIP)
YOKO-5FDG-B
YOKO-5FDG-B
(CIP+SIP)
YOKO-10FDG-B
YOKO-20FDG-B
(CIP)
YOKO-30FDG-B
(CIP)
YOKO-30FDG1-B
YOKO-50FDG-B
Total Usable Area of Shelves
(m²)
1
1.1
3
3
5
5
10
20
30
29.7
51
Board Layers
4+1
4+1
6+1
6+1
6+1
6+1
7+1
11+1
10+1
11+1
17+1
Max. Temperature of Shelf (℃)
80
80
80
80
80
80
80
80
80
80
80
Power Supply
Custom made according to customer’s request
Compressed Air
≥0.1m³/min
(P=0.5-0.8Mpa)
≥0.1m³/min
(P=0.5-0.8Pa)
≥40L/min
(P=0.5~0.8Mpa)
≥40L/min
(P=0.5-0.8MPa)
≥0.1m³/min
(P=0.5-0.8MPa)
≥0.1m³/min
(P=0.5-0.8MPa)
≥0.1m³/min
(P=0.5-0.8MPa)
≥0.1m³/min
(P=0.5-0.8MPa)
≥0.1m³/min
(P=0.5-0.8MPa)
≥0.1m³/min
(P=0.5-0.8MPa)
≥0.1m³/min
(P=0.5-0.8MPa)
Dimensions(L*W*H mm)
2850*1060*2500
3200*1560*2700
3200*1250*3000
4600*1620*2800
4000*1600*3200
5000*2000*3300
5400*1900*3300
5800*2200*3600
8000*2200*3500
8000*2300*2600
8500*2700*5000
Approx. Weight (kg)
2000
2000
2800
4500
5000
8000
8000
12000
15000
15000
25000

APPLICATION • Vaccines • Antibiotics • Reagents • Blood Products
