ProductsYOKO-FS-H Multipurpose Universal Pulverizing Machine
YOKO-FS-H
Powder Handling

YOKO-FS-H Multipurpose Universal Pulverizing Machine

•20-600 kg/hr •Max. feed size 6-15 mm •Output size 12-120 mesh

YOKO BIOPHARM
Pulverizing Machine
YOKO BIOPHARM offers a comprehensive selection of pharmaceutical and food-grade pulverizers, including ultrafine, hammer, coarse, high-energy, universal, and graded continuous models. Our pulverizers are designed to meet the diverse demands of the pharmaceutical, food, healthcare, and other industries. Choose our pulverizing machine to ensure uniform particle size and preserve active ingredients, making them ideal for the refined production of ultrafine powders for traditional Chinese medicine, food additives, health supplements, and chemical raw materials.
MECHANICAL PULVERIZING
YOKO-FS Series

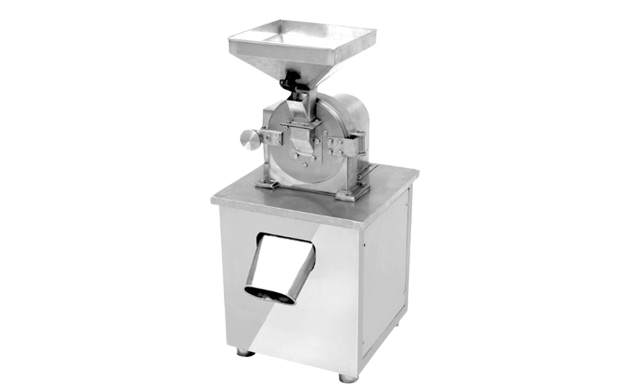

YOKO-FS-H Series Pulverizing machine consists of a crushing mill, collecting box and dustbin. Used for pulverizing, crushing, and grinding a wide variety of materials to varying finesses.

FEATURES
  • Simple structure and solid
  • Stable running and high efficiency
  • Low cost and low noise
  • This flour mill grinding machine is easy to clean
  • Widely used in pharmaceutical, food, chemical and other industries
  • In accordance with national requirements, GMP standard
  • All the parts that contact materials are made of stainless steel
  • Anti-corrosion, smooth finish

TECHNICAL DATA & Benefits

Model
YOKO-150FS-H
YOKO-300FS-H
YOKO-400FS-H
YOKO-500FS-H
YOKO-600FS-H
Capacity (kg/hr)
20-150
50-300
100-400
200-500
300-600
Feed Size (mm)
6
10
12
15
15
Output Size (mesh)
12-120
12-120
12-120
12-120
12-120
Total Power (kW)
Custom made according to customer’s request
Main Speed (r/min)
~4500
~3800
~3400
~2900
~2400
Dimension (mm)
550*600*1250
600*750*1450
750*900*1600
850*900*1850
950*1000*1850
Weight (kg)
250
320
450
580
600

APPLICATION
Herbs
Chilli Powder
Cereals
Resin Powder
