YOKO-FZ-B Square Cone High Shear Dry Powder Mixing Machine

YOKO BIOPHARM

Mixing Machine

YOKO BIOPHARM delivers precise engineered industrial mixing systems designed to solve complex processes in the pharmaceutical, food and chemical sectors. Our portfolio covers the full spectrum of blending kinematics, including multi-axial 3D motion, convective diffusion, and high-intensity hydraulic shear. We specialize in optimizing the dispersion of powders, granules, and high viscosity matrices while eliminating centrifugal dead zones. Every system is built for mechanical integrity and process repeatability, offering the scalability needed to transition seamlessly from pilot scale trials to full scale industrial manufacturing.

Conical Mixer

YOKO-FZ Series

YOKO-FZ series is designed with a unique square conical mixing drum that generates strong turbulence and convection during rotation, achieving rapid and uniform mixing of materials. Suitable for mixing powders and granules in industries such as food and chemicals.

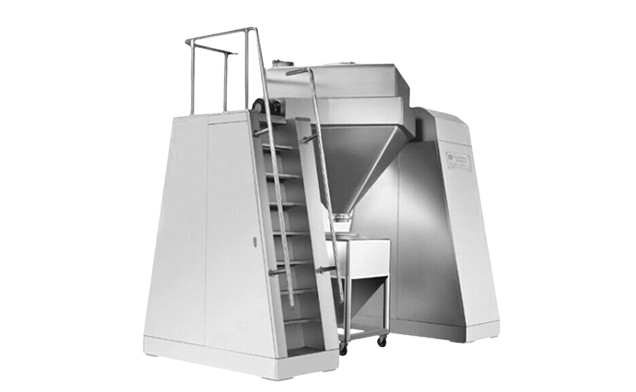

YOKO-FZ-B Square-cone mixer is for mixing powder, granular and other materials, mainly composed of mixing barrel, frame, transmission system, electrical system and other parts.

FEATURES

The evenness of mixing reaches 99%, and the volume charge factor reaches 0.8

Smooth running, reliable performance, easy operation

Highly polished inner and outer surfaces of the barrel, no dead comers

easy to discharge materials, clean, and no cross contamination

Conforms to the requirement of GMP

HMI + PLC control system

TECHNICAL DATA & Benefits

Model	YOKO-50FZ-B	YOKO-300FZ-B	YOKO-1000FZ-B	YOKO-1500FZ-B	YOKO-2500FZ-B
Total Volume (L)	50	300	1000	1500	2500
Working Volume (L)	30	180	600	900	1500
Mixing Time (mins)	4-8	6-10	6-10	6-10	6-10
Drum Rotating Speed (rpm)	12
Power	Custom made according to customer’s request
Weight (kg)	180	380	700	900	1800

APPLICATION

•Medicine Powder

•Bakery Ingredients

•Beverage Powder

•Daily Chemicals
