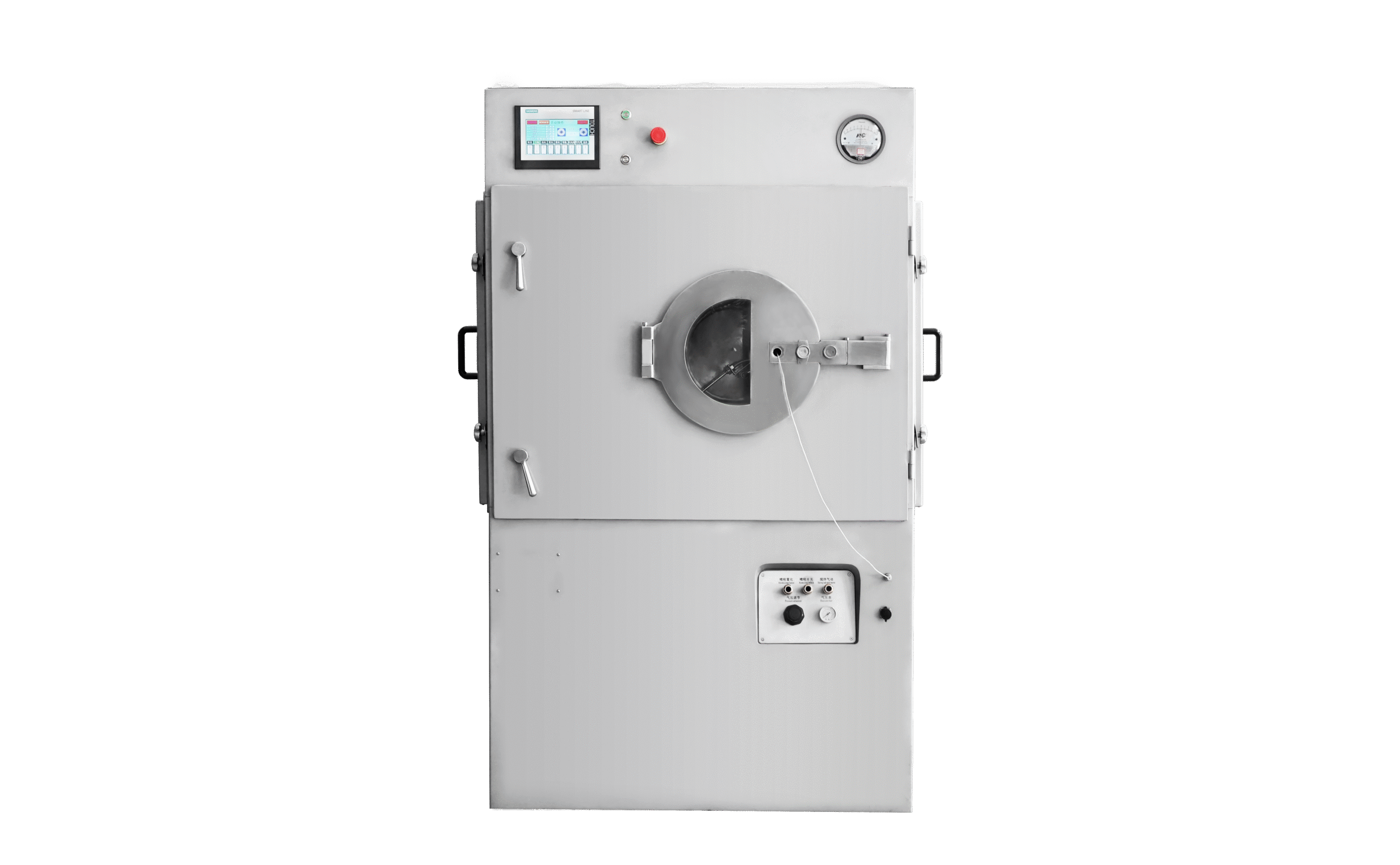

YOKO-GB-B Automatic Tablet Film Coating Machine

YOKO BIOPHARM

Tablet Coating Machine

YOKO BIOPHARM tablet coating machines are highly automated and engineered to meet the highest standards of safety and quality. As a leading manufacturer of tablet coater systems, we integrate advanced control systems that enable precise regulation of the coating process. These machines can be customized to accommodate various tablet shapes and sizes, enhancing their versatility across pharmaceutical applications. Our tablet coating machines are designed to minimize waste and significantly reduce contamination risks. Equipped with efficient air handling systems, they effectively remove excess coating solution and prevent the accumulation of dust and contaminants, thereby maintaining a cleaner and more controlled production environment.

AUTOMATIC

YOKO-GB Series

Designed with closed structure for efficient coating, applied to tablets, pellets, candies, etc.

YOKO-GB-B high efficient automatic tablet coating machine is widely used for coating various tablets, pills and sweets with organic film, water-soluble film, sugar film, etc. The interchangeable coating machine is an enhanced version of the standard coating machine, allowing for versatile production capabilities across various batches. This adaptable machine finds extensive application in pharmaceutical, biotechnological, and food industries.

FEATURES

Meets the requirements of GMP

Closed environment for coating process

Variable frequency stepless speed regulation

Equipped eith air exhaust cabinet for dust removal

Performing uniform atomization

Adjustable position and angle

TECHNICAL DATA & Benefits

Model	YOKO-5GB-B	YOKO-10GB-B	YOKO-20GB-B	YOKO-40GB-B	YOKO-80GB-B	YOKO-100GB-B	YOKO-150GB-B	YOKO-200GB-B	YOKO-250GB-B	YOKO-300GB-B	YOKO-350GB-B	YOKO-400GB-B	YOKO-500GB-B	YOKO-600GB-B	YOKO-800GB-B
Capacity (kg/batch)	5	10	5, 10, 20	40	80	100	150	200	250	150-270	350	400	500	600	800
Speed of Drum (rpm)	3-28	3-28	3-28	3-28	3-24	1-24	2-20	2-20	2-11	2-11	2-11	2-11	2-11	2-12	1-5
Power of Motor (kW)	Custom made according to customer’s request
Feeding Port Diameter (mm)	280	280	280	340	380	380	480	480	580	580	580	580	580	580	/
Drum Diameter (mm)	520	580	520, 580, 680	750	930	930	1200	1200	1500	1560	1560	1560	1560	1560	1560
Overall Size(mm)	10409801780	10409801780	96010501910	11608401830	139010402080	149012802080	170013002100	170015002100	200016602270	200016602270	200016602270	200016602270	200020662270	205019402500	205024702500
