ProductsYOKO-GP-E High Speed Automatic Blister Packing Machine with Roller Plate
YOKO-GP-E
Blister Packing

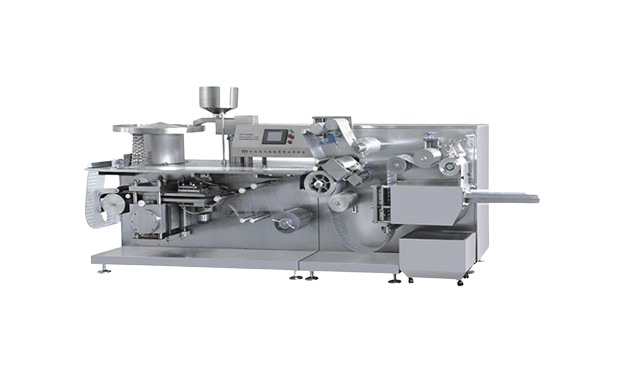

YOKO-GP-E High Speed Automatic Blister Packing Machine with Roller Plate

•9,000-14,400 plates/hr. •Max.forming depth 12 mm •Max.forming area 240*320 mm

Contact Us
YOKO BIOPHARM
Blister Packing Machine
YOKO BIOPHARM blister packing machine is used for packing blister packs which are widely used in the pharmaceutical, medical and consumer products industries. Tablets, capsules, or small items are placed into the cavities, then, the blister packs are sealed to safeguard the contents. To meet various production requirements, YOKO BIOPHARM blister packing machine offers a wide range of models, each designed to meet different production needs. Our machines guarantee high-quality packaging while ensuring the safety and integrity of the products.

Automatic Blister Packing Machine
YOKO-GP Series
High speed rotation blister packing, for ALU-PVC and ALU-ALU materials.

YOKO-GP-E high speed automatic blister packaging machine combines flat and roller modes to provide a complete compression molding effect, which can be completed quickly. The blister packaging equipment is suitable for packaging capsules, tablets, candies, electronic components and other similar materials, and can complete 14,400 pieces per hour at the fastest.

Features of YOKO-GP-E Blister Packing Machine
  • Comply with cGMP standards
  • PLC control system
  • Touch screen display parameter settings
  • Visual inspection and rejection
  • Variable frequency speed regulation
  • Quick and easy to change molds
  • Alloy steel welding, heavy load bearing
  • Temperature resistant and durable heating plate

TECHNICAL DATA & Benefits

Model
YOKO-220GP-E
YOKO-260GP-E
YOKO-320GP-E
Punching Frequency (cut/min)
150
150
60-240
Capacity (plates/min)
150
150
240
Max. Forming Depth (mm)
12
12
12
Max. Forming Area (mm)
180*210
180*260
240*320
PVC Hard Sheet (mm)
(0.25-0.35)*220
(0.25-0.35)*260
(0.25-0.35)×320
Aluminum foil PTP (mm)
0.02*220
0.02*260
0.02*320
Outer Diameter of PVC Roll (mm)
<300
<300
<700
Outer Diameter of PTP Roll (mm)
<250
<250
<250
PVC & PTP Roll Core Hole Diameter (mm)
70-76
70-76
70-76
Power
Custom made according to customer’s request
Air Pressure
Air pressure: 0.5-0.7MPa Air
consumption: 0.2m³/min
Air pressure: 0.5-0.7MPa Air
consumption: 0.2m³/min
Air pressure: 0.5-0.7MPa Air
consumption: 0.4m³/min
Cooling Water
Water pressure: 0.1-0.25Mpa Water
Consumption: 0.01-0.02m³/min
Circulating cold water tank or tap water
Water pressure: 0.1-0.25Mpa Water
Consumption: 0.01-0.02m³/min
Circulating cold water tank or tap water
Water pressure: 0.1-0.25Mpa Water
Consumption: 0.01-0.02m³/min
Circulating cold water tank or tap water
Weight (kg)
2400
2600
3500
Dimension (L*W*H mm)
3130*1150*1900
3130*1150*1900
4460*1350*1950

APPLICATION
• Capsules & Tablets
• Ketchup
• Butter
• Accessorles
