YOKO-GY-B High Speed Rotary Tablet Press Machine

•30,000-675,000 pcs/hr •29-75 punching dies •Tablet diameter 25-llmm

Contact Us
YOKO BIOPHARM Tablet Press
YOKO BIOPHARM offers a range of highly automated tablet presses, from single punch models—ideal for small-scale use to rotary models designed for industrial production, with a variety of punch options to meet diverse production needs. Equipped with automatic feeding, tablet ejection, and dust removal systems, our machines ensure tablets remain free from contaminants. They produce thousands of tablets per hour, handling various formulations and shapes with precision. Advanced technology ensures accurate dosing, maintains product purity, and meets the highest safety and quality standards.

Rotary Press Tablet Machine
YOKO-GY Series
High-speed tablet pressing model, designed for rapid tablet production of all industires.

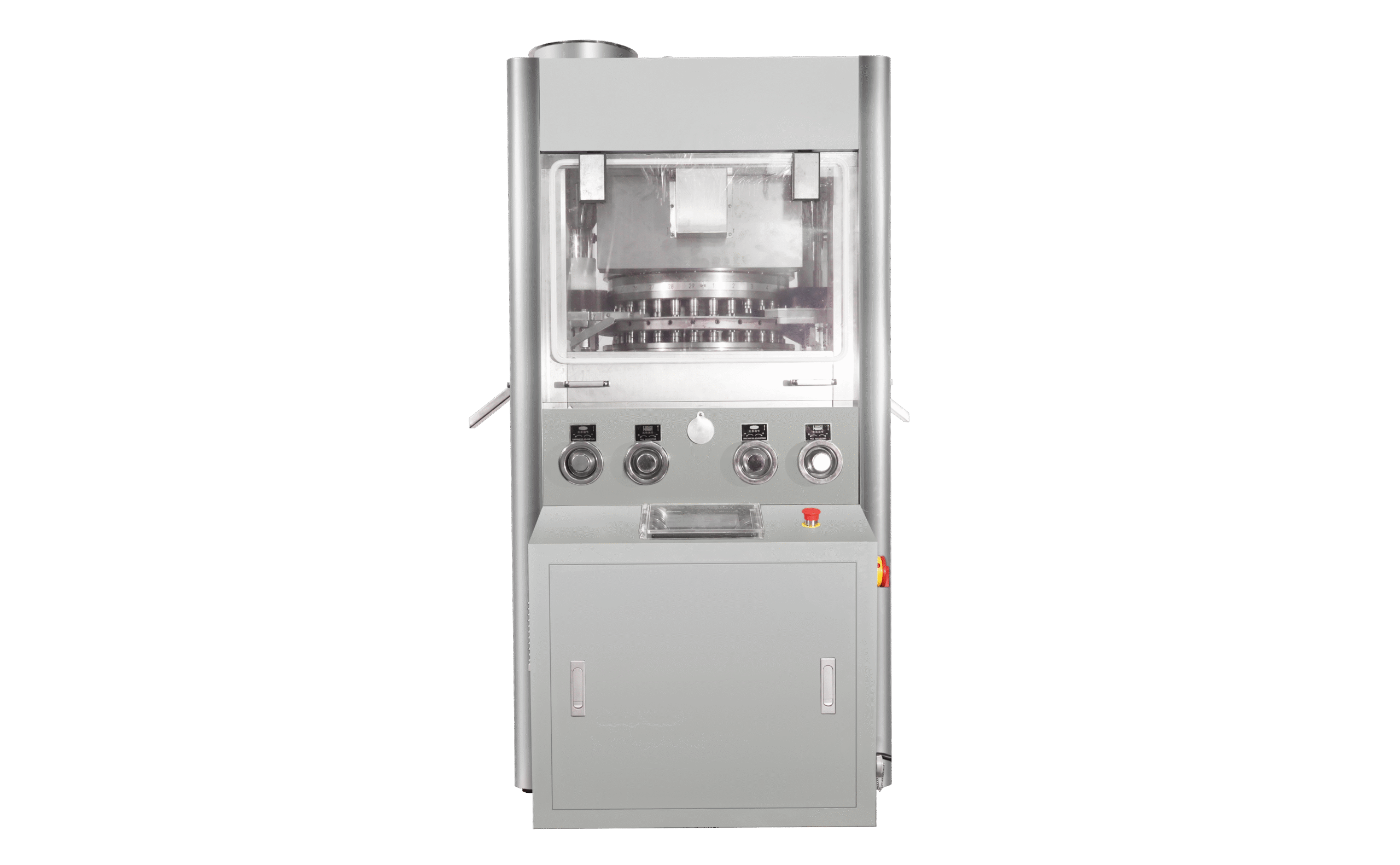

YOKO-GY-B high speed double rotary tablet compression machine is equipped with a force-feeding system for shape-pressing equipment, which can press the grains of materials into round or irregular shape tablets, such as candy or calcium tablets with double-side letter printing. It is widely used in industries including pharmaceutical, chemical, food, etc.

FEATURES
  • Made of stainless steel, meets the cGMP standards
  • Installed pressure sensors for accurately monitoring working pressure
  • High production efficiency to meet mass production
  • Servo control without hand wheel, higher automation program
  • Fully closed working conditions for less dust pollution
  • Organic-glass perspective window for tablet production observation
  • Adopts programmable controller for control parts
  • No dead angle structure, easy to observe and clean
  • Uses special anti-seepage oil, dustproof device

TECHNICAL DATA & Benefits

Model
YOKO-370-32GY-B
YOKO-520-29GY-B
YOKO-580-35GY-B
YOKO-580-37GY-B
YOKO-580-43GY-B
YOKO-580-53GY-B
YOKO-580-57GY-B
YOKO-660-45GY-B
YOKO-660-55GY-B
YOKO-660-75GY-B
Number of Punch Die
32
29
35
37
43
53
57
45
55
75
Max. Main Pressure (KN)
80
100
80
80
100
100
100
100
100
100
Max. Tablet Diameter (mm)
16
25
25
23
18
13
11
25
16
13
Production Capacity (pcs/hr)
30,000-210,000
139,200
189,000
199,800
232,200
286,200
307,800
405,000
495,000
675,000
Power (kW)
Custom made according to customer’s request
Net Weight (kg)
1400
2380
3500
3500
3500
3500
3500
3980
3980
3980
Overall Dimension (L*W*H mm)
1200*950*1850
1200*900*1800
1170*1290*1900
1170*1290*1900
1170*1290*1900
1170*1290*1900
1170*1290*1900
1704*1380*1926
1704*1380*1926
1704*1380*1926


APPLICATION • Vitamin Supplements • Vaccine Tablets • Cleaning Tablets • Veterinary Tablets
