YOKO-GY-D Rotary Tablet Press Machine

•43,000-405,000 pcs/hr •10-57 punching dies •Tablet diameter 25-llmm

Contact Us
YOKO BIOPHARM Tablet Press
YOKO BIOPHARM offers a range of highly automated tablet presses, from single punch models—ideal for small-scale use to rotary models designed for industrial production, with a variety of punch options to meet diverse production needs. Equipped with automatic feeding, tablet ejection, and dust removal systems, our machines ensure tablets remain free from contaminants. They produce thousands of tablets per hour, handling various formulations and shapes with precision. Advanced technology ensures accurate dosing, maintains product purity, and meets the highest safety and quality standards.

Rotary Press Tablet Machine
YOKO-GY Series
High-speed tablet pressing model, designed for rapid tablet production of all industires.

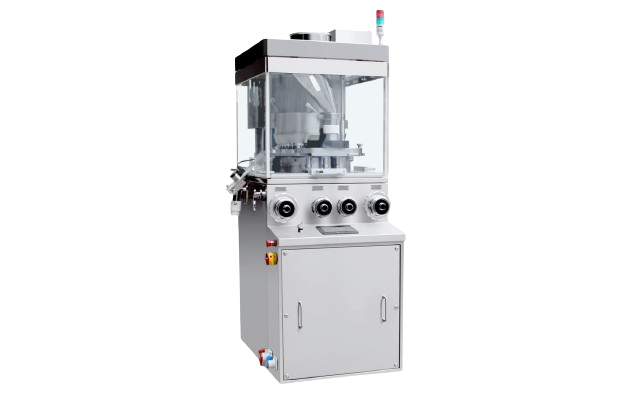

YOKO-GY-D series automatic tablet presser is another type of high speed equipment for making kinds of tablets. Compressing various kinds of granular raw materials that meet the requirements of tablet pressing into tablet form. Maximum output is up to 405,000 tablets per hour.

FEATURES
  • Conforms to GMP requirements
  • Adopt Organic glass window and stainless steel door frame
  • Automatic lubrication of upper and lower guides and punches to minimize guide wear
  • Hydraulic overload protection device is equipped, the machine can stop automatically
  • Equipped with high-precision pressure sensor, it can self-check the tablet compression pressure
  • All kinds of impeller in forced feeder can meet request according to different materials

TECHNICAL DATA & Benefits

Model
YOKO-290-10GY-D
YOKO-290-15GY-D
YOKO-370-26GY-D
YOKO-600-35GY-D
YOKO-600-45GY-D
YOKO-600-55GY-D
YOKO-600-57GY-D
YOKO-660-45GY-D
YOKO-660-55GY-D
YOKO-660-75GY-D
No. of Stations
10
15
26
35
45
55
57
45
55
75
Max. Pressure (kN)
80
100
100
80
80
80
80
100
100
100
Max. Tablet Diameter (mm)
25
25
25
25
17
11
11
25
19
16
Max. Tablets output (pcs/ hour)
43,000
65,000
135,000
189,000
243,000
297,000
307,800
405,000
495,000
675,000
Power
Custom made according to customer’s request
Machine Dimensions (mm)
1100*950*1610
1100*950*1610
1200*950*1850
1170*1290*1900
1170*1290*1900
1170*1290*1900
1170*1290*1900
Host 1704*1380*1926

Control Cabinet 750*550*1750
Host 1704*1380*1926

Control Cabinet 750*550*1750
Host 1704*1380*1926

Control Cabinet 750*550*1750
Machine Net Weight (kg)
675
675
1700
2800
2800
2800
2800
4220
4220
4220

APPLICATION • Vitamin Supplements • Vaccine Tablets • Cleaning Tablets • Veterinary Tablets
