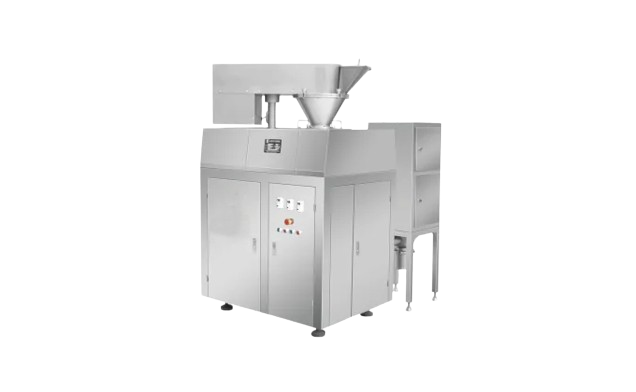

YOKO-GZ-H Dry Granulator Machine for Pharmaceuticals

YOKO BIOPHARM

Granulating Machine

YOKO BIOPHARM granulating machine is a specialized apparatus utilized across diverse sectors such as pharmaceuticals, chemicals, food processing, and agriculture. Its primary function is to transform powder or solid substances into granules or pellets. These machines are crucial for enhancing material flowability, handling, and dosage precision, while also facilitating control over particle size and morphology.

DRY GRANULATION

YOKO-GZ Series

YOKO-GZ Series work by mixing powder, then compress and crush it into whole granules, best for Heat-sensitive and water-sensitive materials.

YOKO-GZ-H dry granulator is equipment that makes granules directly from the target material by using crystals in the material. It is widely used in the pharmaceutical industry, chemical industry, agricultural feed, fertilization and other powder processing industries.

FEATURES

Using advanced electric hydraulics with simple and reliable operation

Finished dry powder with uniform particle density

Adopt high-efficiency feeding structure

Using cooling water circulation system, no sticking roller phenomenon

No wetting agents such as water or ethanol are required in the process

Not require reheating to dry

Less process, high efficiency and low cost

TECHNICAL DATA & Benefits

Model	YOKO-10GZ-H	YOKO-60GZ-H	YOKO-80GZ-H	YOKO-100GZ-H	YOKO-200GZ-H
Capacity (kg/hr)	2-10	20-60	30-80	50-100	80-200
Feeding Speed (rpm)	6-60
Roll Speed (rpm)	2-20
Roll Size (mm)	200×25	200×80	200×100	200×120	250×200
Roll Max Pressure (T)	5×2	10×2	10×2	15×2	25×2
Roll Drive Motor (kW)	4	4	7.5	11	15
Feed Drive Motor (kW)	0.75	1.1	2.2	2.2	3
Granule Drive Motor (kW)	0.75	1.1	2.2	2.2	3
Oil Pump Drive Motor (kW)	0.5	0.75	1.1	1.1	2.2
Max Working Pressure of Hydraulic (MPa)	10	20	25	30	50

APPLICATION

•Pharmaceuticals

•Agrochemicals

•Detergents

•Multi-vitamins
