YOKO-J-H Automatic Capsule Filling Machine

YOKO BIOPHARM Capsule Filler

YOKO BIOPHARM’s capsule filler machines are available in various sizes and models, depending on the specific needs of the pharmaceutical manufacturers. They can range from semi automatic to fully automatic capsule filling machines that can fill thousands of capsules per hour. Capsule fillers are designed to handle a variety of capsule sizes and types, including gelatin and vegetarian capsules. This professional pharmaceutical equipment uses specialized technology to ensure accurate dosing and prevent contamination of drug formulation during the filling process.

Fully Automatic Capsule Filling Machine

YOKO-J Series

YOKO-J series fully automatic capsule filler is engineered for seamless capsule production, filling powders and granules. Effortlessly adapt to any capsule size with our innovative quick-change mold system, while maintaining GMP conditions.

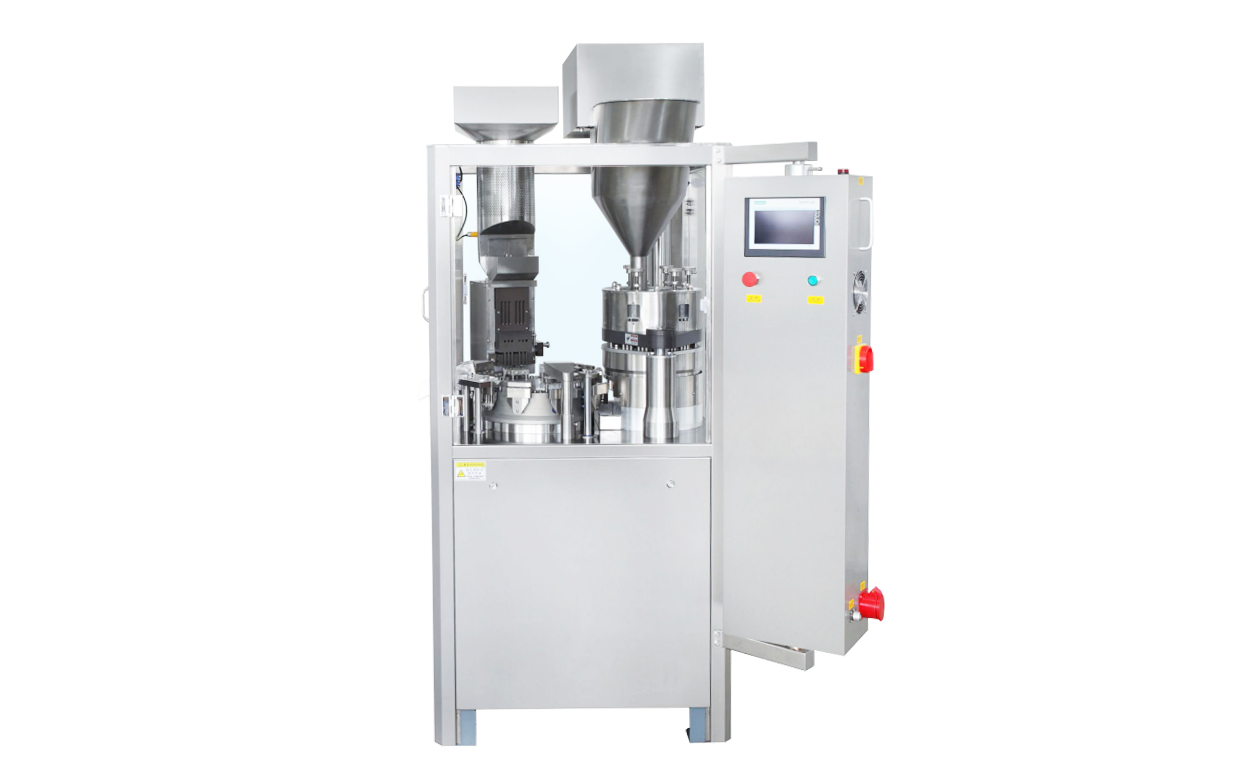

YOKO-J-H capsule filler is a fully automatic machinery for precision powder filling into empty capsules, widely used in pharmaceutical, supplementary, health care industries. It’s manufactured under GMP standards and increasing the efficiency of capsule production.

TECHNICAL DATA & Benefits

Model	YOKO-200J-H	YOKO-400J-H	YOKO-800J-H	YOKO-1200J-H	YOKO-2000J-H	YOKO-2500J-H	YOKO-3200J-H	YOKO-3500J-H	YOKO-3800J-H
Capacity (capsules/hr)	12,000	24,000	48,000	72,000	120,000	150,000	192,000	210,000	228,000
Filling Material	Powder, Granules	Powder, Granules	Powder, Granules	Powder, Granules	Powder, Granules	Powder, Granules	Powder, Granules	Powder, Granules	Powder, Granules
Die Hole Number	2	3	6	9	18	18	27	27	27
Power Supply (can be customized)	380V 50Hz 3P	380V 50Hz 3P	380V 50Hz 3P	380V 50Hz 3P	380V 50Hz 3P	380V 50Hz 3P	380V 50Hz 3P	380V 50Hz	380V 50Hz
Total Power (kW)	3.75	3.75	5.57	5.57	6.97	6.97	9.85	9.37	9.37
Capsule Size	00#-4#	00#-4#	00#-4#	00#-4#	00#-4#	00#-4#	00#-4#	00#-4#	00#-4#
Filling Variation	±3% – ±4%	±3% – ±4%	±3% – ±4%	±3% – ±4%	±3% – ±4%	±3% – ±4%	±3%-±4%	±3%-±4%	±3%-±4%
Noise	≤78dB(A)	≤78dB(A)	≤78dB(A)	≤75dB(A)	≤75dB(A)	≤75dB(A)	≤75dB(A)	≤75dB(A)	≤75dB(A)
Qualified Rate	≥99.5%	≥99.5%	≥99.5%	≥99.5%	≥99.5%	≥99.5%	≥99.5%	≥99.5%	≥99.5%
Overall Dimension (mm)	8009701870	8009701870	10208601970	10208601970	120010502100	120010502100	185014702080	185014702080	185014702080
Weight (kg)	600	600	900	900	1300	1300	2400	2400	2400

Features of YOKO-J-H Capsule Filling Machine

Intelligent control systems: Our YOKO-J-H series capsule filling machines feature an intuitive touchscreen interface and PLC system that minimizes manual intervention and automatically detects operational errors.

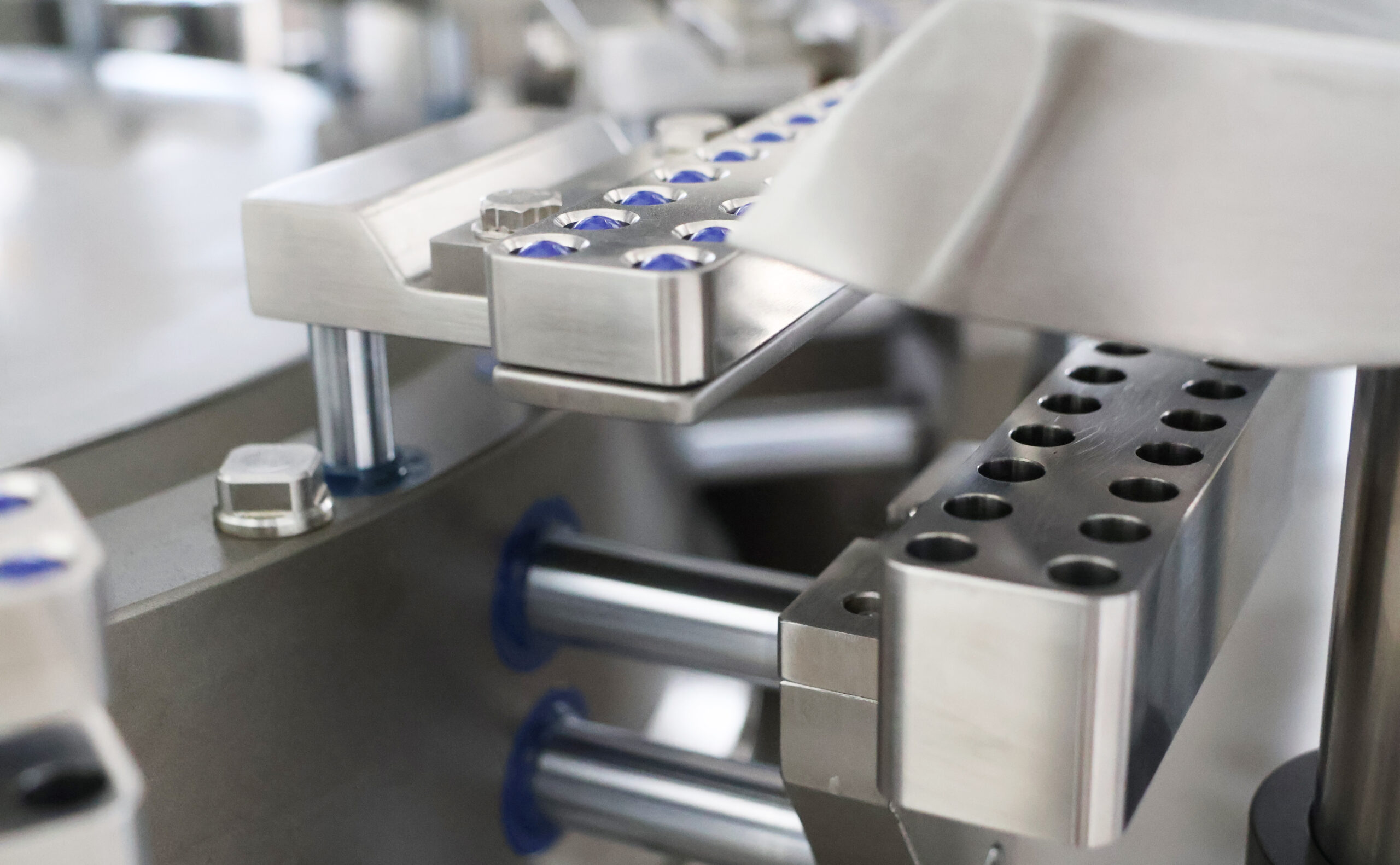

High filling accuracy: The vacuum positioning technology ensures each capsule is perfectly aligned and securely held during the filling process. It can prevent capsule dislocation, empty capsules, underfilled capsules, and damaged capsules.

Flexible operation: Easily modify production rates to smooth ramping prevents capsule damage during speed changes. Tool-free modification of capsule closure tightness, which prevents powder leakage.

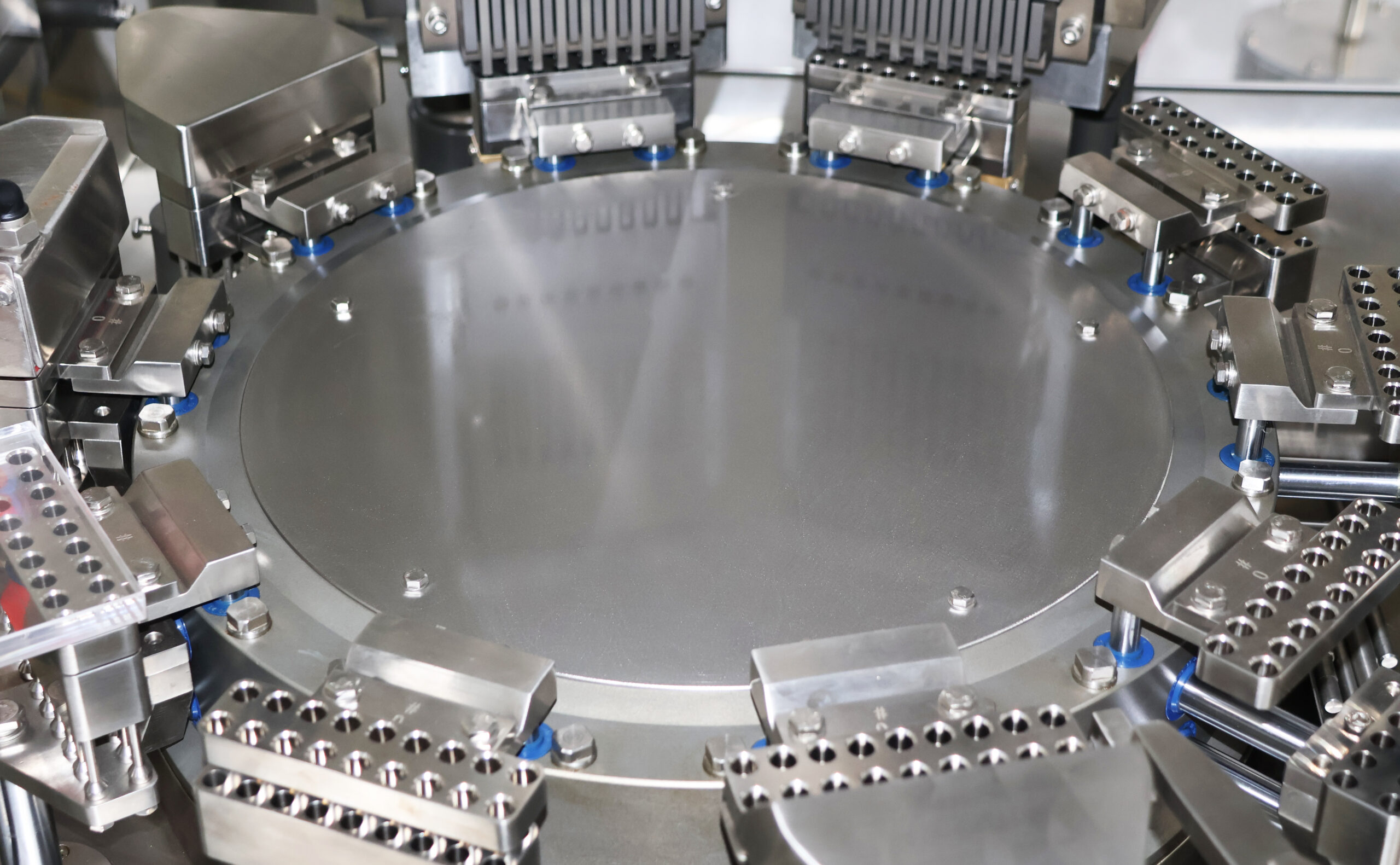

Low dust environment configuration: Adopt 100% enclosed dosing chamber and synchronized rotating table technology to avoid cross contamination and ensures continuous operation of capsule production stations.

Easy cleaning for parts: Magnetic and bayonet safety connection, easy one-touch removal of components for easy cleaning of excess powder and pharmaceutical-grade cleanliness.

Why Choose YOKO-J-H Capsule Filling Machine?

YOKO-J-H capsule filling machine adopts a fully automatic operation and control system, and completes the production of finished capsules through intermittent operation and perforated disc filling. This process includes capsule removal, capsule separation, filling, waste rejection, locking, finished product discharge, module cleaning, etc., and ensures that all work procedures are completed in compliance with GMP requirements.

With our innovative engineering design, pharmaceutical-grade precision and user-centric design, we expect the YOKO-J-H series to be praised by practical applications in the competitive capsule filling market. For capsule manufacturers who pursue reliability, efficiency and compliance, the YOKO-J-H series is an ideal choice. We focus on the filling accuracy of capsules, the convenience and stability and safety of equipment operation, and the sanitation standards of multiple industries. From the production capacity range of 12k to 22.8k capsules per hour, you can choose the model that meets your production needs. And we will respond to your inquiries or questions within 24 hours.

How to Ensure Compliance of Capsule Filling Machine?

Our capsule fillers are completely under the GMP, FDA, and ISO standards, delivering pharma grade precision in every capsule. Built with 316L stainless steel and full traceability, they ensure compliance without compromising efficiency – perfect for pharmaceutical and supplement manufacturers who value both quality and productivity.

Disclaimer: The capsule filling machines and molds sold on our website is intended for lawful use only. Our products are not designed or marketed for the production of illegal drugs or counterfeit pharmaceuticals. By purchasing from us, the buyer certifies that the equipment will not be used in violation of any local, state, or federal laws.

APPLICATION

• Supplement Capsules

• Pharma Capsules

• Beauty Capsules

• Food Capsules
