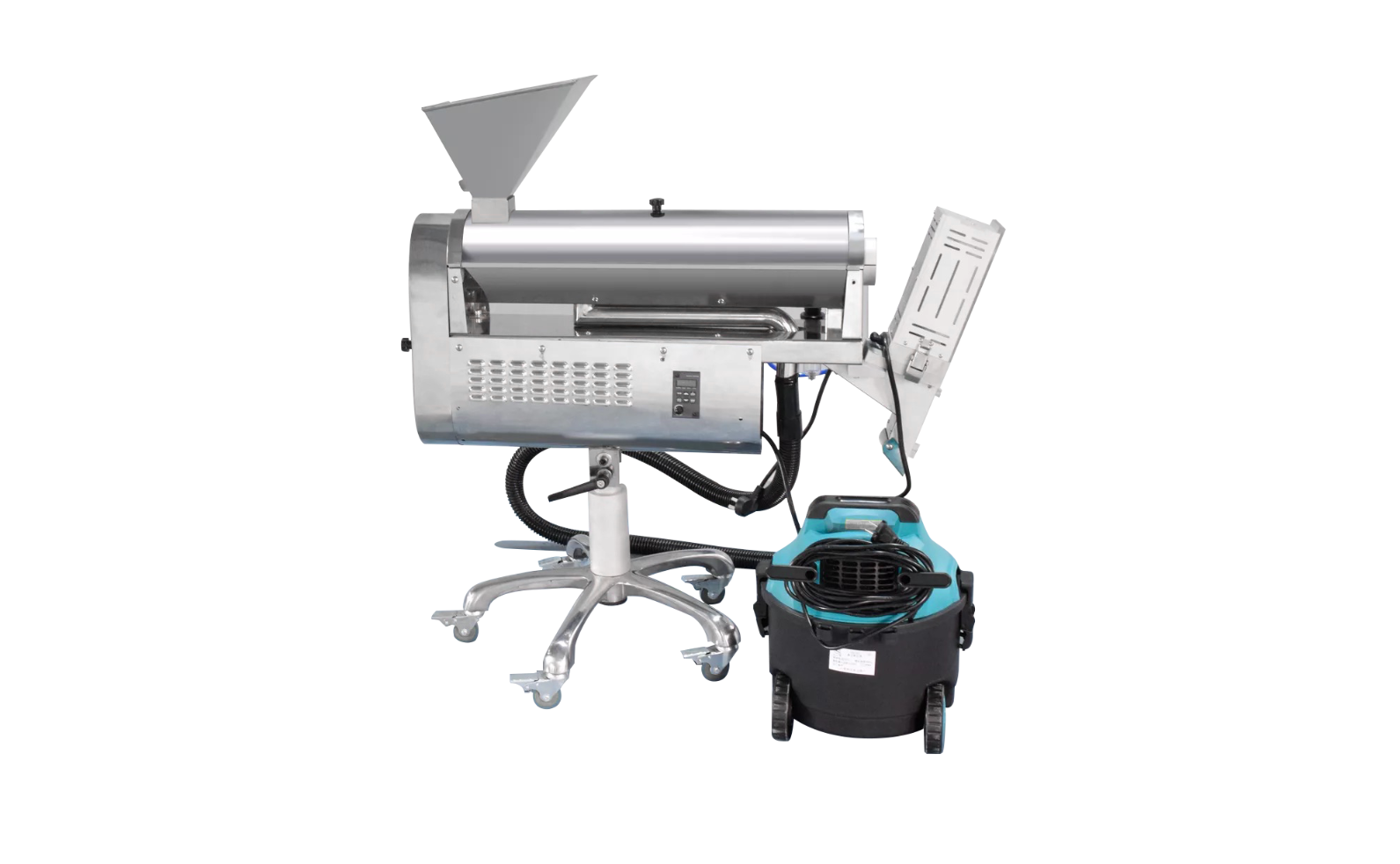

YOKO-JPG-2 Hard Capsule Pill Polishing Machine

•200,000-300,000 capsules/hr •Capsule 00#~5# •Horizontal type, polishing and sorting functions

YOKO Pharma Capsule Polisher
Capsule polishers of YOKO Pharma are designed to enhance the quality and hygienic standards of hard capsules and softgels. The capsule polishing machine efficiently removes residual powder, dust, and imperfections from the capsule surface, ensuring a smooth, uniform appearance and helping your products meet stringent quality standards and regulatory requirements.
The capsule sorter is used to seamlessly integrate into existing capsule production lines and is compatible with both fully automatic and semi-automatic capsule filling equipment, ensuring smooth, coordinated operation. Ultimately, this streamlined process ensures that every capsule has a clean, professional appearance, consistently meeting the highest industry quality standards.


Hard Capsule

YOKO-JPG Series
YOKO-JPG Series is applied for hard capsules polishing, with functions of unqualified capsules sorting and rejection.

YOKO-JPG-2 is a capsule polishing equipment with a sorting function. It is not only used to polish and eliminates static electricity of capsules, but also automatically remove capsules with light filling, empty shells, fragments and caps separated. Applied for pharmaceutical, food, health care and other industries.

FEATURES
  • GMP Compliance: Made from GMP-standard stainless steel
  • Auto Polishing & Sorting: Efficiently polishes and removes defective capsules
  • Smooth Finish: Stainless steel surface is bright and flawless
  • Safe Operation: Reliable electrical system with grounding protection
  • Easy Maintenance: Easy to disassemble and replace


TECHNICAL DATA & Benefits

Model
YOKO-JPG-2
YOKO-JPG-2-I
Capacity (capsules/hr)
200,000
300,000
Capsule Size
00#-5#
00#-5#
Power Supply
Custom made according to customer’s request
Power (kW)
0.18
0.18
Compressed Air
0.25m³/min 0.3MPa
15m³/min 0.3MPa
Negative Pressure
2.7m³/min -0.014MPa
100m³/h -0.014MPa
Weight (kg)
42
40
Overall Dimension (mm)
800*550*800
950*600*1000
