ProductsYOKO-JPG-3A-R Vertical Capsule Polishing Machine
Capsules

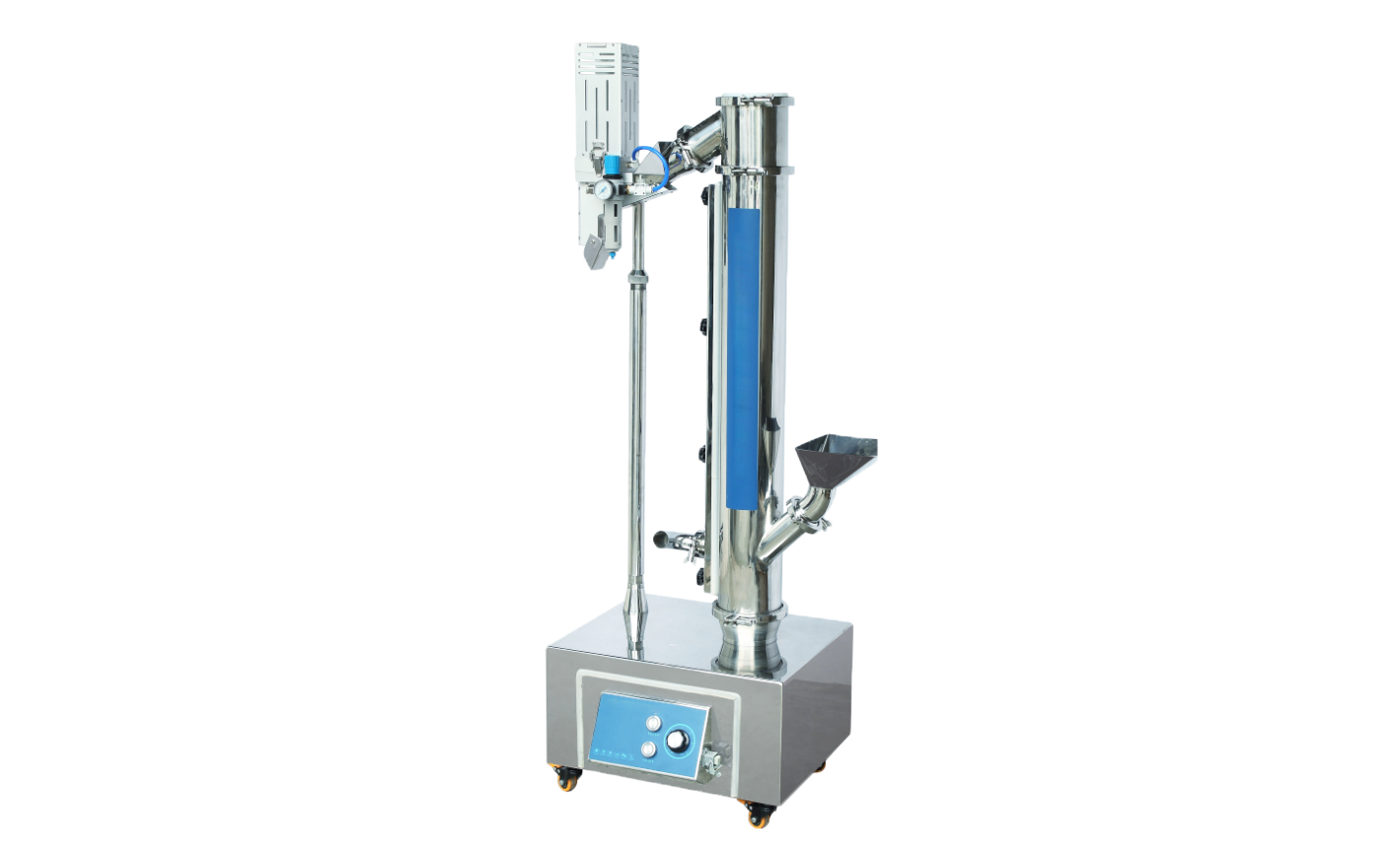

YOKO-JPG-3A-R Vertical Capsule Polishing Machine

•450,000-600,000 capsules/hr •Capsule 00#~4# •Vertical type

YOKO Pharma Capsule Polisher
Capsule polishers of YOKO Pharma are designed to enhance the quality and hygienic standards of hard capsules and softgels. The capsule polishing machine efficiently removes residual powder, dust, and imperfections from the capsule surface, ensuring a smooth, uniform appearance and helping your products meet stringent quality standards and regulatory requirements.
The capsule sorter is used to seamlessly integrate into existing capsule production lines and is compatible with both fully automatic and semi-automatic capsule filling equipment, ensuring smooth, coordinated operation. Ultimately, this streamlined process ensures that every capsule has a clean, professional appearance, consistently meeting the highest industry quality standards.


Hard Capsule

YOKO-JPG Series
YOKO-JPG Series is applied for hard capsules polishing, with functions of unqualified capsules sorting and rejection.

YOKO-JPG-3A-R series capsule polishing machine integrates polishing and lifting functions, available with single or double heads option. Its inlet can seamlessly connect with various capsule filling machines, while the outlet can be linked to a capsule sorting device and a metal detector, enabling an integrated production line for polishing, lifting, sorting, and inspection.

FEATURES
  • GMP Standard: 316 stainless steel contact parts
  • Dual Functionality: Polishing and lifting with space for connections
  • 360° Adjustment: Flexible inlet and outlet rotation
  • Auto Sorting: Detects and removes defective capsules
  • Quick Install: Easy disassembly and setup
  • Easy Clean: Detachable brush, no dead corners


TECHNICAL DATA & Benefits

Model
YOKO-JPG-3A-R (single head)
YOKO-JPG-3A-R (double head)
Applicable Capsule Sizes
00#,0#,1#,2#,3#,4#
00#,0#,1#,2#,3#,4#
Capacity (capsules/hr)
450,000
600,000
Power
Custom made according to customer’s request
Compressed Air
0.3m³/min 0.3MPa
0.3m³/min 0.3MPa
Dimensions (mm)
740*510*1500
805*745*1500
Weight (kg)
80
100
