ProductsYOKO-KDB-X Multi Lane Granules Stick Packing Machine
YOKO-KDB-X
Bag Packing

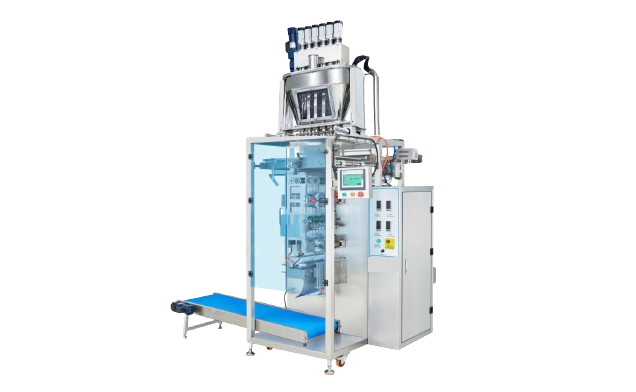

YOKO-KDB-X Multi Lane Granules Stick Packing Machine

•6,000-36,000 bags/hr •4-12lanes •Max bag size 180*80 mm

Contact Us
YOKO BIOPHARM
Bag Packing Machine
YOKO BIOPHARM provides various types of vertical bag packing machines, designed with single filling lane or multi filling lanes, they can complete the pouch filling and sealing processes efficiently under the stable working systems. The pouch packing machines can be applied to pack powder, liquid, lotion, ointment materials. Commonly used in food and beverage, pharmaceutical, supplementary industries, as well as manufacturing companies.

POUCH FORMING, FILLING AND SEALING

YOKO-KDB Series
Multi-lane sachet filling and sealing, applied for granule materials.

Multi lane granule stick packing machine is used for dosing granule products and sealing them in the form of sticks. It is widely used in pharmaceutical, food, chemical and other industries.

FEATURES

  • Dual languages touch screen display
  • PLC control system
  • Advanced performance, high power, low noise, compact structure, easy to maintain
  • Servo motor controls film pulling, accurate positioning
  • Independent temperature control systems
  • Adjusting pouch length without changing the mold
  • Photoelectric tracking system is adopted to ensure correct printing with automatic counting function
  • Equipped with film automatic deviation correction function
  • Adopts damping mechanism to ensure the straightness and tension stability of the film
  • Able to set alarm requirements

TECHNICAL DATA & BENEFITS

Model
YOKO-480-4KDB-X
YOKO-480-6KDB-X
YOKO-680-4KDB-X
YOKO-680-6KDB-X
YOKO-980-6KDB-X
YOKO-980-12KDB-X
Number of Lanes
4
6
4
6
6
12
Capacity (bags/hr)
9600-13200
12600-21600
6000-13200
12600-21600
7200-18000
14400-36000
Range of Measurement (g)
3-30
1-80
1-80
1-80
/
/
Bag Size (mm)
(L)30-160
(W)20-60
(L)30-160
(W)40
(L)30-160
(W)20-80
(L)30-160
(W)20-55
(L)30-180
(W)20-80
(L)30-180
(W)20-40
Power
Custom made according to customer’s request
Packing Material
Paper/PE, PET/AL foil/PE, PET/PE, NYLON/PE,Tea-leaf filtering paper etc.
Weight(kg)
850
980
980
980
1800
1800
Overall dimensions
1800*1638*2650
1900*1900*2650
1800*1538*2750
1900*1900*2650
2101*1987*3344
2101*1987*3344

APPLICATION
  • Tea Granules
  • Instant Coffee
  • Rice
  • Seeds
