YOKO-LD-H Ribbon Blender Industrial Powder Mixer

•Hopper volumn 100-15000 L •Horizontal ribbon mixing •Under GMP standards

Contact Us
YOKO BIOPHARM
Mixing Machine
YOKO BIOPHARM delivers precise engineered industrial mixing systems designed to solve complex processes in the pharmaceutical, food and chemical sectors. Our portfolio covers the full spectrum of blending kinematics, including multi-axial 3D motion, convective diffusion, and high-intensity hydraulic shear. We specialize in optimizing the dispersion of powders, granules, and high viscosity matrices while eliminating centrifugal dead zones. Every system is built for mechanical integrity and process repeatability, offering the scalability needed to transition seamlessly from pilot scale trials to full scale industrial manufacturing.

Trough Mixer
YOKO-LD Series
YOKO-LD series is a type of trough ribbon blender, promotes material circulation for efficient mixing. Suitable for dry powder and granular pre-mixing, as well as solid-liquid mixing processes involving the addition of small amounts of liquid, achieving rapid and macroscopically uniform mixing.

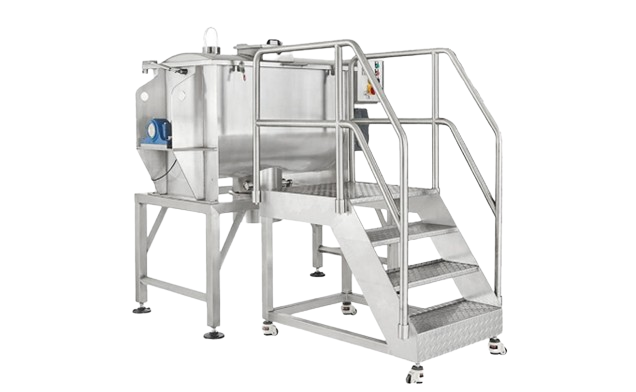

YOKO-LD-H ribbon blender for powder mixing consists of a U-shaped horizontal trough, transmission parts and ribbon agitating blades which usually have double or triple layers. The outer spiral of this powder mixing mechanism makes the material move from the sides to the center of the tank and the inner screw conveyor the material from the center to the sides to get the convective mixing.

FEATURES
  • Made of a solid stainless frame body, extra strong for rugged use
  • Pneumatic automatic unloading
  • Quick open folio lid design
  • Stirrer parts without dead space
  • Easy to clean and efficient

TECHNICAL DATA & Benefits

Model
YOKO-100LD-H
YOKO-200LD-H
YOKO-300LD-H
YOKO-500LD-H
YOKO-1000LD-H
YOKO-1500LD-H
YOKO-2000LD-H
YOKO-3000LD-H
YOKO-4000LD-H
YOKO-5000LD-H
YOKO-6000LD-H
YOKO-8000LD-H
YOKO-10000LD-H
YOKO-12000LD-H
YOKO-15000LD-H
Volume (L)
100
200
300
500
1000
1500
2000
3000
4000
5000
6000
8000
10000
12000
15000
Load Efficiency
0.4-0.8
0.4-0.8
0.4-0.8
0.4-0.8
0.4-0.8
0.4-0.8
0.4-0.8
0.4-0.8
0.4-0.8
0.4-0.8
0.4-0.8
0.4-0.8
0.4-0.8
0.4-0.8
0.4-0.8
Power
Custom made according to customer’s request
Dimension (mm)
1000*650*670
1190*740*770
2030*630*980
2320*730*1130
2800*920*1320
3180*1020*1550
3310*1120*1640
3750*1290*1820
4220*1400*1990
4220*1500*1990
4700*1610*2260
4420*2150*2470
5520*2960*2720
5720*3010*2840
5840*3540*2940
Weight (kg)
300
330
720
980
1700
1800
2100
3000
3980
4620
6180
8200
8920
9520
9950

APPLICATION
•Medicine Powder
•Bakery Ingredients
•Resin Ingredients

•Daily Chemicals
