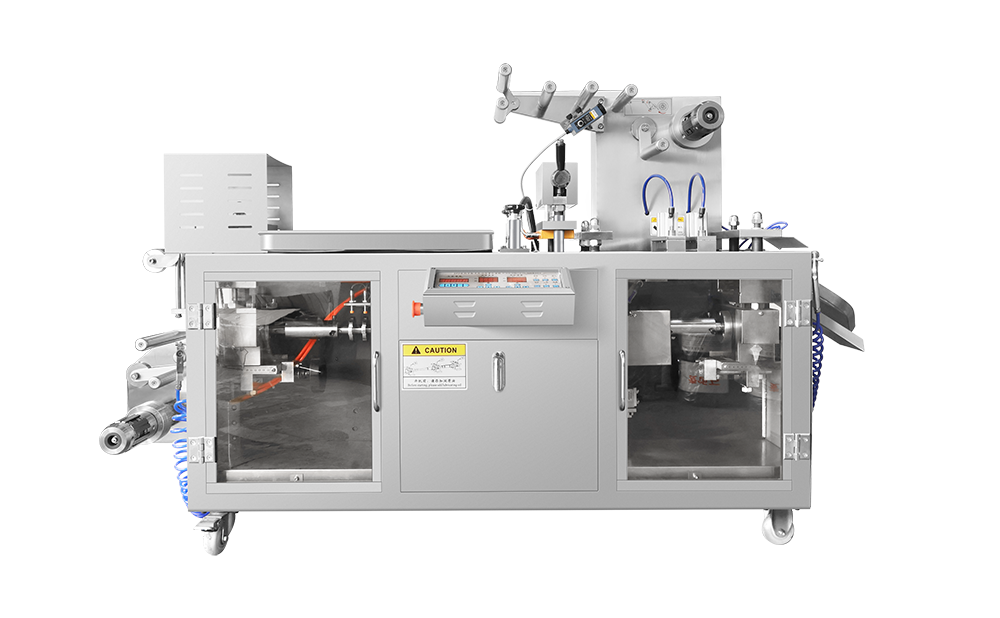

YOKO-P-F 1
YOKO-P-F 1

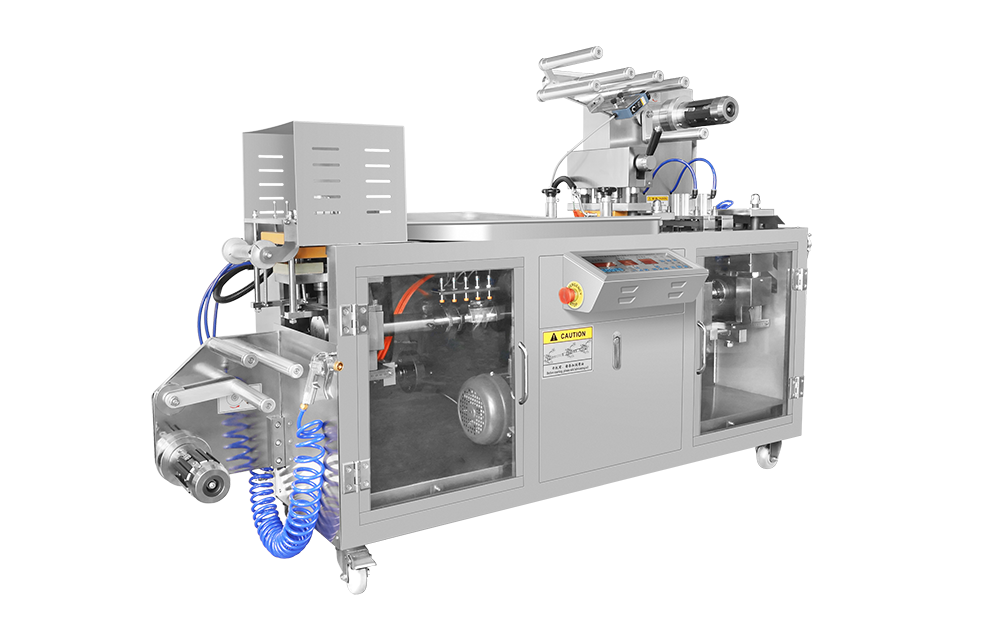

YOKO-P-F 2

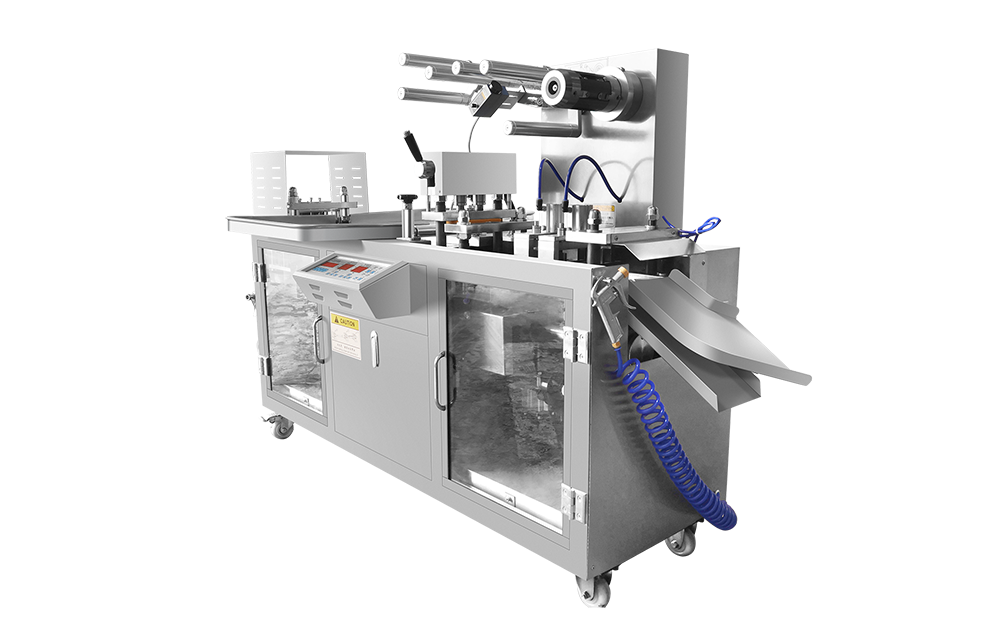

YOKO-P-F 3
Blister Packing

YOKO-P-F Automatic Blister Packaging Machine

•1,980-9,600 plates/hr •Max. forming depth 35mm •Max forming area 310*160mm²

Contact Us
YOKO BIOPHARM
Blister Packing Machine
YOKO BIOPHARM blister packing machine is used for packing blister packs which are widely used in the pharmaceutical, medical and consumer products industries. Tablets, capsules, or small items are placed into the cavities, then, the blister packs are sealed to safeguard the contents. To meet various production requirements, YOKO BIOPHARM blister packing machine offers a wide range of models, each designed to meet different production needs. Our machines guarantee high-quality packaging while ensuring the safety and integrity of the products.

Automatic Blister Packing Machine
YOKO-P Series
Versatile for ALU-PVC, paper-PVC, ALU-ALU composite blister packaging in various shapes.

YOKO-P-F series automatic blister packaging machine is designed to use ALU and PVC materials, complete blistering for pills, tablets, capsules, solid foods or consumer parts, preventing products from dust and moisture to extend the shelf life. The blister packing machine is able to work continuously up to 9,600 blister packages per hour.

FEATURES
Features of YOKO-P-F Automatic Blister Packaging Machine
  • Transmission system innovation: the main transmission shaft structure isdriven by a chain, which reduces the error by more than 60% compared withtraditional gear transmission
  • Intelligent control: equipped with imported PLC control system, optional materialshortage detection system, automatic feeding device and visual inspection andrejection system
  • Automatic feeding: photoelectric control of multi-material processing andautomatic waste edge punching, supporting PVC hard sheet, PTP aluminum foiland hard aluminum packaging materials
  • Precision correction system: using imported stepper motor and visualcorrection system, printing registration accuracy 0.1mm, improving thepackaging grade effect
  • Multi-industry applicability: including the packaging of medicines, food, medicaldevices and electronic components, and supporting single blisters, multi-linkblisters and special-shaped blisters
  • Upgrade of coiling system: compared with traditional shafts, the air expansionshaft used by YOKO-P-F only takes 1-2minutes to change the roll, material lossis less than 1%, and efficiency and cost are greatly improved

How Does YOKO-P-F Automatic Blister Packaging Machine Work?
  • Step 1 –Forming (up & down heating): The double-sided heating system is used to precisely control the temperature of the PVC materialto fully form the blister shape
  • Step 2 – Product Feeding: Accurately fl the productinto the formed blister cavity, automatically detect missing particles and remove unqualifed objects
  • Step 3 – Heating Sealing (up heating): This is the step for laminating the aluminum foil cover with the formed blister under heating and pressure
  • Step 4 – Embossing: The purpose of this step is to press product information and anti-counterfeiting logo on the aluminum foil surface
  • Step 5 –Impression: Adopt modern printing technology, high-resolution UV inkjet coding
  • Step 6 –Cutter: Servo-driven rotary die-cutting device for precision cutting of blisters
  • Step 7 – Finished Product Output: Automatically transported to the station,can be connected to cartoning machine or other packaging equipment

Why Choose YOKO-P-F Automatic Blister Packaging Machine?
YOKO-P-F automatic blister packing machine is compatible with your various blister packaging needs. Taking into account the production scale of different customers, we have production specifications ranging from 1,980 to 9,600 plates per hour, and support various shapes of blister types. Using our blister packaging machine can bring greater improvement to your efficiency, including energy saving of equipment, reduction of waste, intelligent system control, compliance with GMP production requirements, etc. Choose YOKO BIOPHARM blister packaging machine to bring you more possibilities!


TECHNICAL DATA & Benefits

Model
YOKO-80P-F
YOKO-80P1-F
YOKO-120P-F
YOKO-150P-F
YOKO-150P1-F
YOKO-260P-F
YOKO-320P-F
Punch Frequency (cut/hr)
600-1980
600-1200
600-1980
600-2100
600-2100
600-2400
600-2100
Capacity (plates/hr)
1980
2400
2400
1200-3600
1200-4200
3600-9600
3600-9600
Max. Forming Area (mm²)
105*70
105*70
125*75
145*100
145*110
240*140
310*160
Max. Forming Depth (mm)
15-25
25
15-25
15-26
26
14-26
35
Stroke Range (mm)
30-80
30-80
30-80
50-120
50-120
40-140
40-180
Standard Plate Size (mm)
80*57
80*57
80*57
80*57
80-57
80*57
80*57
Air Pressure (MPa)
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
0.4-0.6
Power Supply
Custom made according to customer’s request
PVC Hard Sheet (mm)
(0.15-0.5)*110
(0.15-0.5)*110
(0.15-0.5)*125
(0.15-0.5)*150
(0.15-0.5)*160
(0.15-0.5)*250
(0.15-0.5)*320
PTP Aluminum Film (mm)
(0.02-0.035)*110
(0.02-0.035)*110
(0.02-0.035)*125
(0.02-0.035)*150
(0.02-0.035)*160
(0.02-0.035)*250
(0.02-0.035)*320
Noise
<75dBA
<75dBA
<75dBA
<75dBA
<75dBA
<75dBA
<75dBA
Weight (kg)
475
550
465
890
890
1500
2000
Overall Dimension (L*W*H mm)
1840*590*1100
1840*900*1300
1840*590*1100
2315*635*1405
2315*635*1405
3250*710*1700
4350*770*1750

APPLICATION
• Capsules
• Tablets
• Medical Products
• Accessories
