ProductsYOKO-RG-A Plastic Tube Filling and Sealing Machine
YOKO-RG-A
Cream

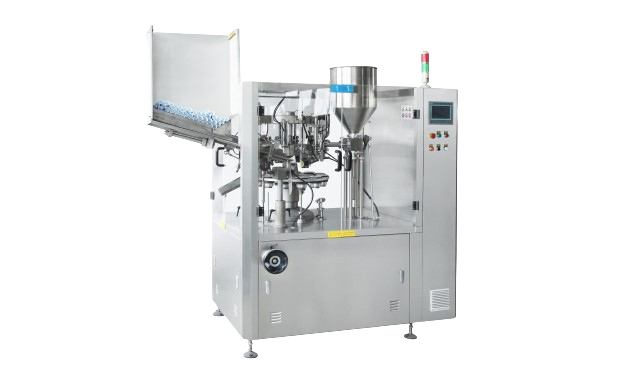

YOKO-RG-A Plastic Tube Filling and Sealing Machine

•1,800-7,200 pcs/hr •Tube diameter 13-50mm •Tube length 50-210mm

Contact Us
YOKO BIOPHARM
Tube Filling and Sealing Machine YOKO BIOPHARM tube filling and sealing machines are engineered to effectively load tubes with substances like creams, gels, ointments, pastes, and adhesives, and subsequently seal them tightly to uphold product integrity and cleanliness.

AUTOMATIC
YOKO-RG Series
Automatic filling and sealing machine for liquid and ointment, applied with plastic or aluminum tubes.

YOKO-RG-A tube filling and sealing machine is mainly designed for filling liquid and ointment materials into plastic or aluminum tubes and finish sealing process. All parts of the machine that come into contact with materials are made of 316L material, which meets GMP production requirements. The tube filling machine is able to complete as fast as 7,200 pcs per hour.

FEATURES
  • Comply with GMP standards
  • PLC system controlling
  • Frequency conversion speed regulation
  • Photoelectric eye detecting filling process
  • Automatic fault alarm and shutdown

TECHNICAL DATA & Benefits

Model
YOKO-60RG-A
YOKO-80RG-A
YOKO-120RG-A
Power
Custom made according to customer’s request
Tube Material
plastic tube, aluminum tube, composite tube
Tube Diameter (mm)
13-50
13-50
13-50
Tube Length (mm)
50-210
210
50-200
Filling Volume (ml)
5-250
3-250
3-250
Product Capacity (pcs/hr)
1800-3000
3000-4500
4800-7200
Air Supply (MPa)
0.5-0.7
0.5-0.7
0.5-0.6
Overall dimension (L*W*H mm)
1950*1000*1800
2200*1200*1900
2350*1300*2200
Machine Weight (kg)
850
1200
1400
