YOKO-RP-F Automatic Alu Alu Strip Packing Machine

YOKO BIOPHARM

Blister Packing Machine

YOKO BIOPHARM blister packing machine is used for packing blister packs which are widely used in the pharmaceutical, medical and consumer products industries. Tablets, capsules, or small items are placed into the cavities, then, the blister packs are sealed to safeguard the contents. To meet various production requirements, YOKO BIOPHARM blister packing machine offers a wide range of models, each designed to meet different production needs. Our machines guarantee high-quality packaging while ensuring the safety and integrity of the products.

Automatic Blister Packing Machine

YOKO-RP Series

ALU-ALU blister packaging, applied for various tablet products.

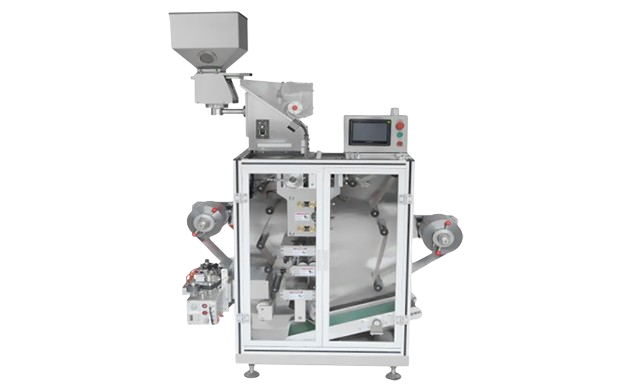

YOKO-RP-F Series Alu-Alu strip blister packaging machine is applied to pack small solid products into striped pockets for better preservation. Commonly used for medicinal tablets packed into flat aluminum strips.

FEATURES

The equipment shell is welded with stainless steel 304

Adopts PLC and touch screen control system

Adopts frequency converter step-less speed regulation

The temperature of the sealing roll mold is controlled by the analog temperature modul

Equipped with optional functions such as solid-state mold wheel coding, picture and text version matching

TECHNICAL DATA & Benefits

Model	YOKO-160RP-F	YOKO-210RP-F	YOKO-260RP-F	YOKO-350RP-F
Capacity (pcs/hr)	4800	1800-4800	66000	/
Cutting Frequency (cut/hr)	2400-4800	600-1200	2400-4800	600-3600
Compressed Air	0.45 MPa ≥0.2m³/min	0.45 MPa ≥0.25m³/min	0.45 MPa ≥0.2m³/min	0.45 MPa ≥0.2m³/min
Max. Film Width (mm)	160	/	250	350
Film Roll Diameter (mm)	300	/	300	300
Total Power (kW)	Custom made according to customer’s request
Weight (kg)	700	2000	1100	1000
Dimension (mm)	13007501700	59007001600	16008501900	16009501900

APPLICATION

• Capsules & Tablets

• Lozenges

• Suppositories

• Accessorles
