YOKO-RTJX-B Jelly Candy Making Machine

YOKO BIOPHARM

Gummy Manufacturing Equipment

At YOKO BIOPHARM, we specialize in providing cutting-edge industrial and commercial gummy candy machine and fully integrated production lines. Unlock limitless possibilities in gummy confectionery creation, producing everything from beloved gummy bears and worms to exciting filled varieties, all customizable in flavor, size, and form. Whether you’re a burgeoning small-scale operation or an established food manufacturer, our experienced gummy manufacturing team is here to guide you with expert production planning and the ideal equipment solutions.

AUTOMATIC

YOKO-RTJX Series

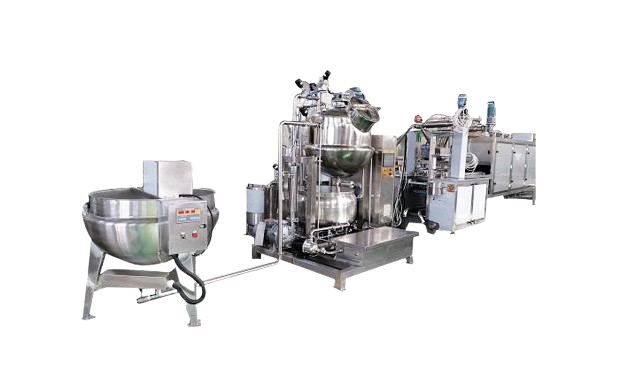

YOKO-RTJX-B jelly candy making machine line is designed to create gummies in different shapes and sizes. The basic set of per production line including: dissolving tank, jelly mass cooker, depositing machine and cooling tunnel (controlled by Servo system), candy moulds, and gelatin melting tank & pipe, all comply with GMP standards.

FEATURES

Comply with GMP standards

Stable PLC control system

PID temperature control technology

Easy operation by touch screen

Precise Servo driving system

High speed mixing and automatic weighing

Quick setting of soft candy

Customizable candy moulds

TECHNICAL DATA & Benefits

Model	YOKO-80RTJX-B	YOKO-150RTJX-B	YOKO-300RTJX-B	YOKO-450RTJX-B	YOKO-600RTJX-B
Production Capacity (kg/hr)	50~80	150	300	450	600
Stroke Speed (n/min)	45-55	45-50	45-55	45-50	45-50
Candy Weight	2-12g (Max)
Power Supply	Custom made according to customer’s request
Compressor Air Consumption (m³/min)	0.3
Compressor Air Pressure (Mpa)	0.4-0.6
Conditions for Cooling Parts	Room temperature：＜25℃ Humidity：＜55％		Room temperature：＜25℃ Humidity：＜50％		Room temperature：＜25℃ Humidity：＜50％
Water Consumption (m³/hr)	0.3

APPLICATION • Gummy Bears • Gummy Worms • Gummy Rings • Gummy Cola Bottles
