YOKO-RXG-B Industrial Hot Air Circulation Drying Oven

YOKO BIOPHARM Dryer Dehydrator

YOKO BIOPHARM offers a comprehensive suite of industrial drying solutions, encompassing spray dryers, fluidized bed dryers, vacuum dryers, hot air circulation dryers, and microwave dryers. Designed to meet the diverse drying requirements of the pharmaceutical, food, chemical, and other industries, our modular equipment supports features like low-temperature drying, energy efficiency, and intelligent control. We provide tailored drying solutions for a wide range of materials, including heat-sensitive, sticky, granular, and liquid substances. Connect with our drying experts today for professional guidance.

HOT AIR CIRCULATION DRYING

YOKO-RXG Series

Tunnel-type sterilization and drying, divided into preheating, sterilizing and cooling segments.

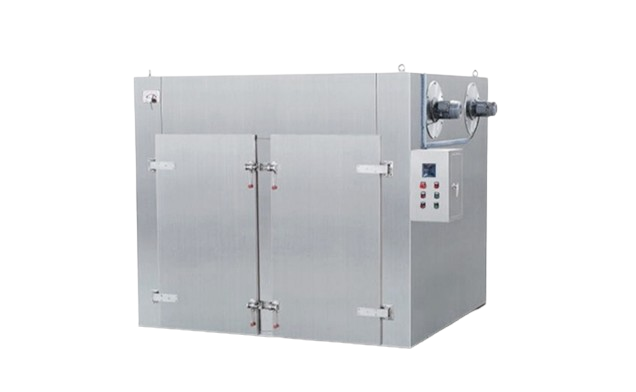

YOKO-RXG-B industrial hot air circulation drying oven can be used in laboratory or industrial settings for a variety of tasks including evaporation, sterilization, temperature testing, and incubating temperature-sensitive experiments.

FEATURES

PLC and HMI control

Materials are evenly dried

Low noise and steady operation

Low electric consumption

Adopts heat pump technology

Absorbs heat from air and recovers waste heat at the same time

Horizontal Blowing 360℃, by using the forced ventilation function

Process conditions can be adjusted freely

TECHNICAL DATA & Benefits

Model	YOKO-20RXG-B	YOKO-30RXG-B	YOKO-50RXG-B	YOKO-100RXG-B	YOKO-200RXG-B	YOKO-300RXG-B	YOKO-400RXG-B
Drying Capacity (kg)	10-20	30	50	100	200	300	400-500
Power (kW)	Custom made according to customer’s request
Consumption of Steam (m²)	8	10	10	18	36	54	72
Heat Dissipation Area (m²)	8	10	10	20	40	80	100
Air Volume (m³/hr)	3400	3400	3400	3450	6900	10350	13800
Temperature Difference (℃)	±2	±2	±2	±2	±2	±2	±2
Dimensions (mm)	13009001500	/	140012002000	230012002000	230022002000	230032002000	446022002290

APPLICATION

•Fruits •Herbals •Meat •Pet Food
