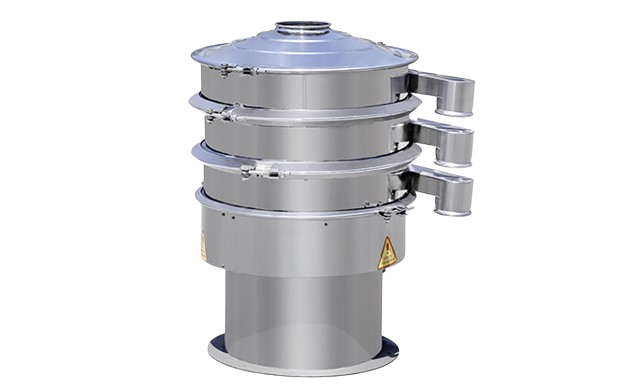

YOKO-SF-F Industrial Powder Sieving Machine

YOKO BIOPHARM

Sieving Machine YOKO BIOPHARM sieving machine is used to handle grading, screening and filtration of granules, powders, mucus and other materials. Different sieves can screen materials of various densities depending on the model. YOKO BIOPHARM offers a durable, compact, and highly efficient Sieving Machine with excellent characteristics for producing high-quality chemical powders.

SIEVING

YOKO-SF Series

YOKO-SF industrial powder sieving machine uses a horizontal vibration motor or special vibration exciter as its vibration source. Able to realize continuous work of the automatic feeding line with a high degree of mechanization.

FEATURES

With excellent screening precision, the blocking rate of the screen is less than 10% on average

Adjustable movement locus and vibration amplitude

Wide application for granular, powdery, and serous materials

Quick and easy change for screen

Easy to clean and operate of wire woven net

Long life of equipment span

Adopts completely enclosed structure to isolate particulate matter pollution

The discharging outlet can be rotated at 360 degrees

Low energy consumption and noise of circular vibrating screen

Automatically stop if a short circuit, phase loss or unstable voltage occurs

Dustproof, waterproof, heatproof and oilproof

TECHNICAL DATA & Benefits

Model	YOKO-390SF-F	YOKO-580SF-F	YOKO-760SF-F	YOKO-910SF-F	YOKO-1120SF-F	YOKO-1420SF-F	YOKO-1720SF-F	YOKO-1920SF-F
Effective Screen Diameter (mm)	390	580	760	910	1120	1420	1720	1920
Effective Screening Area (㎡)	0.1207	0.2289	0.4183	0.6359	0.9499	1.5386	2.2687	2.7922
1-3S Motor Parameters (kW)	0.25	0.37	0.55	0.75	1.1	3	4	5
4-5S Motor Parameters (kW)	0.37	0.55	0.75	1.1	1.5	4	5	5
Number of Layers	1-5

APPLICATION

•Spices

•Seeds

•Powdered Pills

•Detergents
