ProductsYOKO-SP-F Automatic Plastic Ampoule Filling Sealing Machine
YOKO-SP-F
Liquids

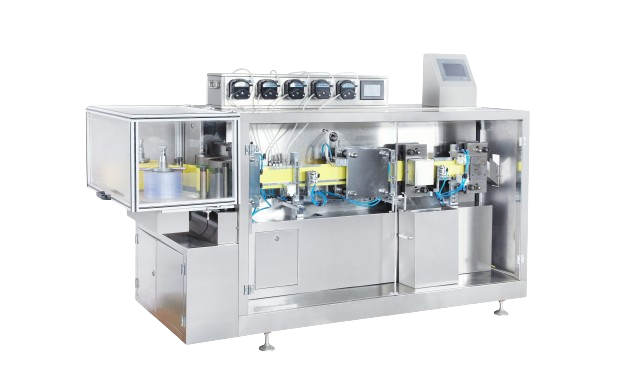

YOKO-SP-F Automatic Plastic Ampoule Filling Sealing Machine

•2,700-18,000 pcs/min •5-15 filling heads •Filling volume 1-100 ml/branch

Contact Us
YOKO BIOPHARM
Liquid Filling Equipment
YOKO BIOPHARM oral liquid dosage equipment is designed for the production and packaging of high-quality oral liquids. We provide both automatic and semi-automatic machinery as well as bespoke solutions for particular needs.

FILLING MACHINE
YOKO-SP Series (Liquid)
Automatically complete the production processes of plastic suppository molding, filling, sealing, etc.

YOKO-SP-F Automatic plastic ampoule filling sealing machine adopts functions of unwinding, ampoule forming, liquid filling, batch number printing, indentation, punching and cutting.It’s specially applied for oral liquid, syrup, essential oil, perfume, health care products in the pharmaceutical, herbal, pesticide, cosmetic, food and supplement industries.

FEATURES
  • PLC control and touch screen operation
  • Meets GMP standards
  • Adopts high quality pnenumatic and electrical components
  • Uses rocker arm operation interface, which enables operation in any position of machine
  • HC high speed, precision, and high-end motion control
  • Automatic frequency conversion for speed control
  • Accurate metering with small error

TECHNICAL DATA & Benefits

Model
YOKO-118SP-F
YOKO-240SP-F
YOKO-360SP-F(10)
YOKO-360SP-F(15)
Capacity (bottles/min)
100
45-100
200-300
220-300
Filling Heads
5
5
10
15
Packaging Materials
PVC/PE
PET/PE, PVC/PE
PET/PE, PVC/PE, PVC/EVOH
PET/PE, PVC/PE, PVC/EVOH
Filling Volume (ml/branch)
1-50
1-50
1-100
1-100
Power (kW)
6
8.5
30
30
Voltage
220V/380V 50/60Hz 3phase
220V/380V 50/60Hz 3phase
380V/50Hz
380V/50Hz
Weight (kg)
850
1200
3000
3000
Overall Dimensions (mm)
2300*850*1450
3200*850*1900
7300*1050*1800
7300*1050*1800

APPLICATION
•Vitamin Oral Solution Ampoule
•Eye Wash Ampoule
•Essence Ampoule
•Conditioner Ampoule
