YOKO BIOPHARM
Blister Packing Machine
YOKO BIOPHARM blister packing machine is used for packing blister packs which are widely used in the pharmaceutical, medical and consumer products industries. Tablets, capsules, or small items are placed into the cavities, then, the blister packs are sealed to safeguard the contents. To meet various production requirements, YOKO BIOPHARM blister packing machine offers a wide range of models, each designed to meet different production needs. Our machines guarantee high-quality packaging while ensuring the safety and integrity of the products.

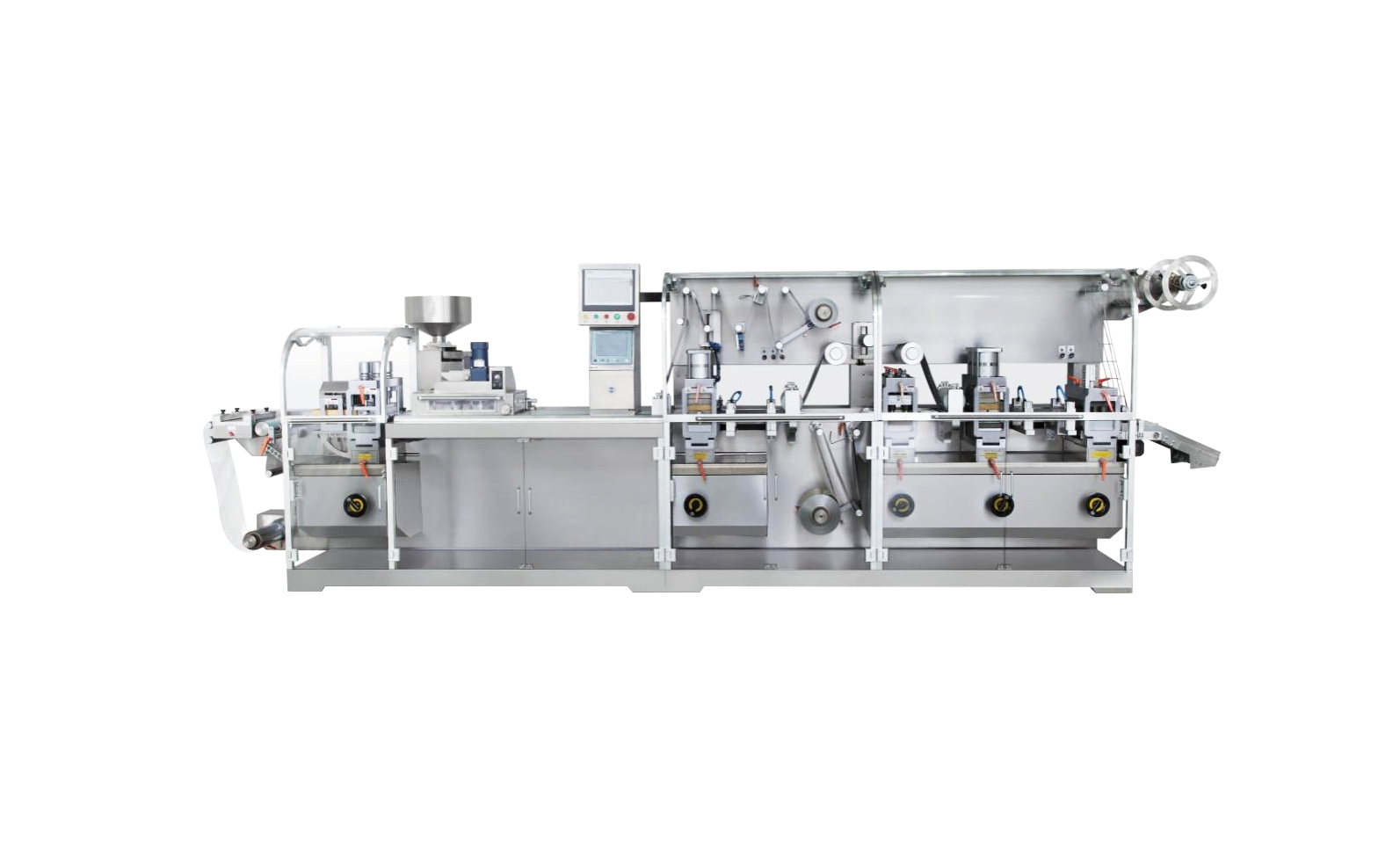

Automatic Blister Packing Machine
YOKO-TP Series
For ALU-PVC blister packing for capsules, tablets, candies, etc.
YOKO-TP-B aluminum foil blister packaging machine is suitable for aluminum-plastic blister packaging. It can complete the blister packaging steps including forming, heat sealing, batch numbering, creasing, creasing, etc. within 15 minutes without any tools. The blister pack machine can complete 8,400 pieces per hour at the fastest speed and is suitable for product packaging such as medicines, food, medical devices, and health products.
FEATURES
- Standard servo motor traction
- Photoelectric detection control
- Tooless and quick mold changing
- Closed structure design to proof dust
- L-shaped structure design ensures stable operation
TECHNICAL DATA & Benefits
| |
Punch Frequency (cut/min) | |
| |
| |
Section Reference Specifications | Standard：80×57mm Reference specifications： 80×57 95×65 103×43 120×43 |
| Non-toxic PVC hard film: 0.15—0.5mm×270mm Coated PTP aluminium foil: 0.02—0.035mm×270mm Tropical aluminium: 0.09—0.15mm×270mm Cold formed aluminium foil: 0.13-0.015mm×270mm The diameter of the reel: 70—76mm |
Heating Power Consumption (kW) | forming heating：1.5 sealing heating：1.5 |
| Custom made according to customer’s request |
| |
| |
| Tap water or circulating water, consumption 60L/hr |
| |
| |
| |
APPLICATION
• Capsules & Tablets
• Ketchup
• Butter
• Accessorles
