ProductsYOKO-WT Automatic Round Bottle Labeling Machine
YOKO-WT
Labeler

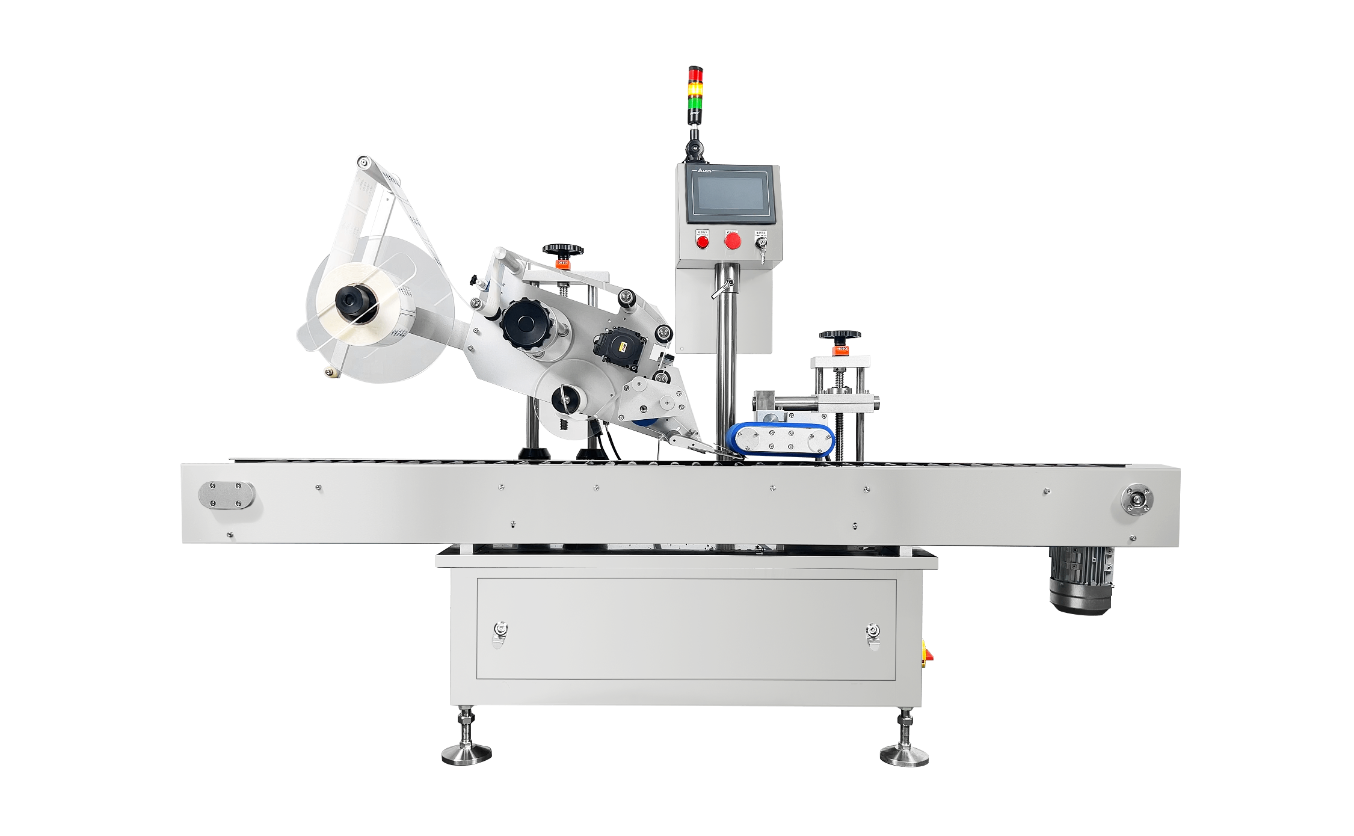

YOKO-WT Automatic Round Bottle Labeling Machine

•3,000-6,000 bottles/hr •Bottle diameter 15-35mm •Air consumption 0.6MPa

YOKO BIOPHARM
Labeler
YOKO BIOPHARM labelers apply labels to containers or outer packages. There are different types of labeling machines designed in automatic and semi-automatic for various applications and label formats, including bottle labeler for single or double sides, horizontal labeling machine, labelwrap-around labeler, shrink sleeve labeling machine and more.

AUTOMATIC

YOKO-WT Series
Adopt horizontal conveying to realize labeling of round bottles, small tapers and circumferential tubes.

The horizontal auto round bottle labeler is applied for round bottles in pharmaceutical, food, chemical and other related industries. It can realize realize the labeling of the whole circle or half circle.

FEATURES

  • PLC, touch screen, standard sensor electronic control system
  • Made of stainless steel and aluminum alloy, strong structure
  • No object, no labeling
  • Automatic fault detection function
  • High labeling positioning accuracy
  • Finished with smooth and wrinkle-free labeling

TECHNICAL DATA & BENEFITS

Model
YOKO-WT
Bottle Diameter (mm)
15-35
Capacity (bottles/hr)
3000-6000
Label Size (mm)
Width ≤110
Power
Custom made according to customer’s request
Dimensions (L*W*H mm)
1760*700*1550
Air Consumption (MPa)
0.6
Weight (kg)
230
