ProductsYOKO-WZH-D Fully Automatic Cartoning Machine
YOKO-WZH-D
Cartoning

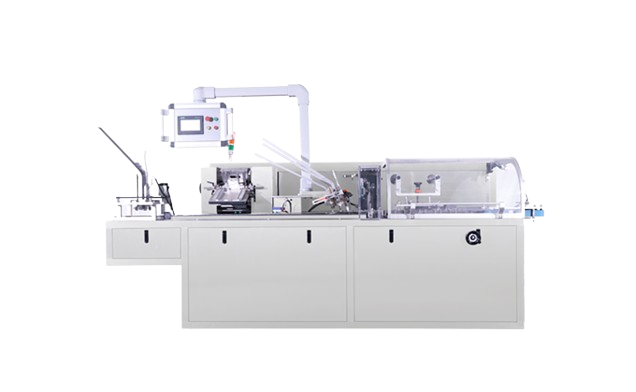

YOKO-WZH-D Fully Automatic Cartoning Machine

•1,200-18,000 cartons/hr •Min. carton size 65*20*14mm •Max. carton size 240*170*80mm

Contact Us
YOKO BIOPHARM
Cartoning Machine
YOKO BIOPHARM manufactures a wide range of horizontal and vertical cartoning machines for packaging various products in the pharmaceutical, food, daily chemical, cosmetic and other industries. The cartoner are all comply with GMP standards and designed with precise control systems, making the machines easy to operate, maintain and clean. We ensure that each machine is equipped with an alarm system, leading the working process safer and more efficient.


Horizontal End Load Cartoner

YOKO-WZH Series
YOKO-WZH Series is a type of high efficiency horizontal end load cartoner engineered for versatility. Designed as an economical yet robust solution, it excels at packaging a wide range of formats, including bottles, blister packs, pouches and more. Whether you are handling pharmaceuticals or consumer goods, this series ensures precise product insertion and reliable performance for all your cartoning needs.

YOKO-WZH-D fully automatic cartoning machine adopts a horizontal cartoning design. During the process, it can complete automatic feeding, box opening, box insertion, batch numbering, box sealing, and waste rejection. This series can pack 18,000 boxes per hour at the fastest speed. The automatic cartoner can package a wide range of products, including those in pharmaceuticals, food, daily chemicals, hardware and other industries.

FEATURES

  • Comply with GMP standards
  • Operated by servo/stepper motor
  • Equipped with PLC programmable control system and visual touch screen
  • Automatic photoelectric eye detection
  • No need for changing molds when replacing products
  • Automatically stop when there is no carton
  • Main drive motor overload protection
  • Hot melt glue spraying and mechanical glue brushing for carton sealing (optional)

TECHNICAL DATA & BENEFITS

Model
YOKO-80WZH-D
YOKO-100WZH-D
YOKO-120WZH1-D
YOKO-300WZH-D
Capacity (cartons/hr)
1800-4800
3000-6000
1200-4200
6000-18000
Carton Dimension Range (mm)
Min.65*20*14 Max.220*170*70
Min.65*20*14 Max.200*80*70
Min.100*50*15 Max.240*170*80
Min.65*25*15 Max.200*85*70
Carton Material
300-400g/ m2
300-400g/ m2
300-400g/ m2
300-400g/ m2
Power Supply
Custom made according to customer’s request
Machine Dimension (mm)
2700*1400*1800
3100*1250*1950
3800*1650*1700
4450*1510*1700
Machine Weight (kg)
1500
1500
1200
2500

APPLICATION
  • Oral Liquid Bottle
  • Bagged Coffee
  • Toothpaste
  • Cream Jar
