ProductsYOKO-WZH-N Automatic Horizontal Cartoner Machine
YOKO-WZH-N
Cartoning

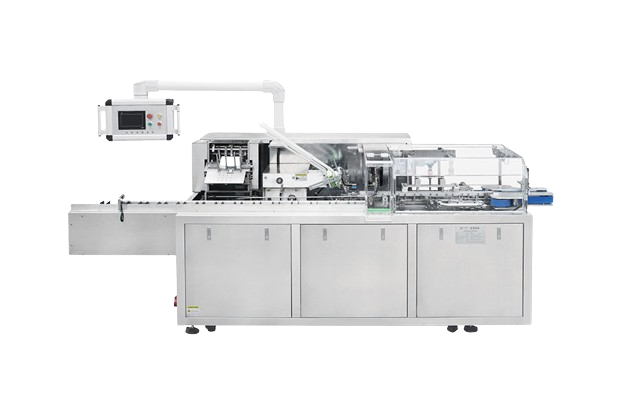

YOKO-WZH-N Automatic Horizontal Cartoner Machine

•600-6,000 cartons/hr •Min. carton size 25*16*15mm •Max.carton size 280*150*40mm

Contact Us
YOKO BIOPHARM
Cartoning Machine
YOKO BIOPHARM manufactures a wide range of horizontal and vertical cartoning machines for packaging various products in the pharmaceutical, food, daily chemical, cosmetic and other industries. The cartoner are all comply with GMP standards and designed with precise control systems, making the machines easy to operate, maintain and clean. We ensure that each machine is equipped with an alarm system, leading the working process safer and more efficient.


Horizontal End Load Cartoner

YOKO-WZH Series
YOKO-WZH Series is a type of high efficiency horizontal end load cartoner engineered for versatility. Designed as an economical yet robust solution, it excels at packaging a wide range of formats, including bottles, blister packs, pouches and more. Whether you are handling pharmaceuticals or consumer goods, this series ensures precise product insertion and reliable performance for all your cartoning needs.

YOKO-WZH-N cartoner machine adopts a horizontal packaging, which can automatically and efficiently complete the work steps of carton feeding, opening, inserting and sealing. According to different packaging requirements, the automatic cartoner of reference packaging can reach 6,000 pieces per hour. When changing products of different specifications, there is no need to change the mold for saving time and effort. Suitable for all kinds of products that are suitable for the cartoning range of the equipment.

FEATURES

  • Comply with GMP standards
  • Stepper motor control
  • Adopt PLC control system
  • Visual touch screen to adjust parameters easily
  • Equipped with photoelectric eye automatic detection and tracking system
  • Change specifications without changing molds
  • Automatic stop if product is not in place
  • Main drive motor overload protection
  • Hot melt glue spraying to seal the carton (optional)

TECHNICAL DATA & BENEFITS

Model
YOKO-40WZH-N
YOKO-50WZH-N
YOKO-60WZH-N
YOKO-75WZH-N
YOKO-80WZH-N
YOKO-100WZH-N
YOKO-130WZH-N
YOKO-160WZH-N
Production Speed (plate/hr)
600-2400
1200-3000
3000-3600
2400-4500
4200-4800
3600-6000
1200-3000
1800-3600
Paper Quality Requirement
250-400g/m2
250-400g/m2
250-400g/m2
250-400g/m2
250-400g/m2
250-400g/m2
250-400g/m2
250-400g/m2
Carton Size (mm)
70 *250*220
custom
L(60-170)
W(30-90)
H(15-60)
L(25-70)
W(16-50)
H(15-40)
L(65-150)
W(40-100)
H(20-90）
L(80-210)
W(30-95)
H(20-60)
custom
L(150-280)
W(100-150)
H(18-40)
Compressed Air Pressure
≥0.6MPa
≥0.6MPa
≥0.6MPa
≥0.6MPa
≥0.6MPa
≥0.6MPa
≥0.6MPa
≥0.6MPa
Air Consumption
20m3/hr
20m3/hr
20m3/hr
20m3/hr
20m3/hr
20m3/hr
20m3/hr
20m3/hr
Power Supply
Custom made according to customer’s request
Dimensions (L*W*H mm)
4568*1260*1300
3700*1050*1788
3034*1050*1788
3000*1200*1700
3400*1200*1700
/
3700*1050*1788
4100*1300*1700
Weight (kg)
1000
1200
1200
1300
1300
1300
1200
1300

APPLICATION
  • Oral Liquid Bottle
  • Bagged Coffee
  • Toothpaste
  • Cream Jar
