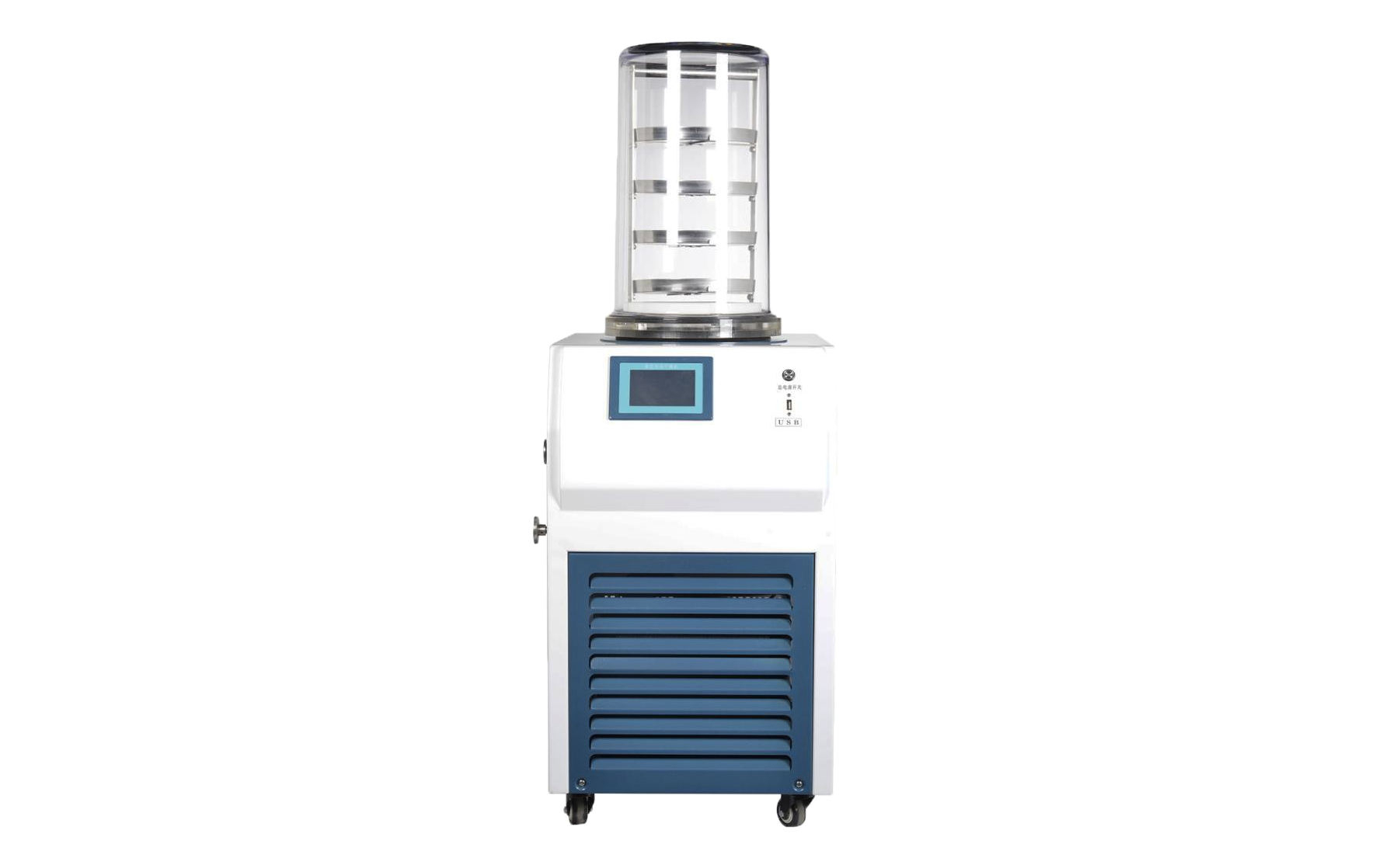

YOKO-XDG-O Lab Vacuum Freeze Drying Machine

YOKO BIOPHARM Freeze Dryer

YOKO BIOPHARM provides a diverse range of high-performance freeze dryer machines tailored to meet the needs of modern industries. Explore our best freeze dryer collection and find the perfect solution for your applications. With extensive experience in supplying laboratory and industrial freeze dryers, we specialize in serving the pharmaceutical, food, and chemical industries, ensuring reliability, efficiency, and top-notch quality.

Laboratory Lyophilization Machine

YOKO-XDG Series

The YOKO-XDG series consist of relatively small lyophilizers for pilot production, lab research and home use. The drying area ranges from 0.1 to 2.25 m², meeting the laboratory standard production conditions.

YOKO-XDG-O lab vacuum freeze drying machine is suitable for freeze drying and strain protection in the fields of biological research, pharmaceuticals, and chemicals. Its function is to protect the activity of heat-sensitive substances, keep them intact to prevent oxidation, have no additives, and have a very long shelf life.

FEATURES

Rapid refrigeration, cold trap inner wall temperature

Adopts single-machine hybrid environmentally friendly refrigeration technology

Configured with cold trap sample pre-freezing function

Friendly human-computer interaction interface, remote control

Freeze-drying data is automatically saved and supports export

Equipped with vacuum alarm function

Achieve micro-adjustment of vacuum degree

TECHNICAL DATA & Benefits

Model	YOKO-0.18XDG-O
Freeze dried area	0.18㎡
Cold trap temperature	-60 ℃ (optional -80 ℃)
Catching water volume (kg/batch)	6
Standard vacuum degree (Pa)	≤ 5 (no-load)
Ultimate vacuum (Pa)	0.1
Pumping Speed (L/s)	4
Material tray	240mm, 4 layers in total
Disc spacing (mm)	70
Bottled loading capacity of penicillin	Penicillin bottle Φ 12mm: 1270 pieces Penicillin bottle Φ 16mm: 716 pieces Penicillin bottle Φ 22mm: 379 pieces
Whole machine power (kW)	1.1 (including vacuum pump)
Machine size (mm)	Width 560 * Depth 560 * Height 980
Machine net weight (kg)	88
Packaging size (mm)	Width 630 * Depth 670 * Height 1500
Total weight with packaging (kg)	150
Power supply	AC220V 50HZ or 110V/60HZ
application environment	Environmental temperature ≤ 35 °C
Operating noise of the entire machine	≤55dB
Warranty Period	Free one-year warranty for the entire machine

APPLICATION • Antibiotics • Herbs • Protein Powder • Gummy
