ProductsYOKO-YDB-X Multi Lane Stick Packaging Machine for Liquid
YOKO-YDB-X
Bag Packing

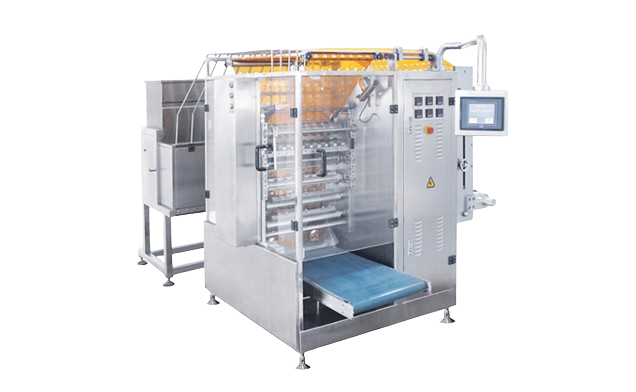

YOKO-YDB-X Multi Lane Stick Packaging Machine for Liquid

•2,400-30,000 bags/hr •4-10 filling lanes •Max width of roll film 180-1300 mm

Contact Us
YOKO BIOPHARM
Bag Packing Machine
YOKO BIOPHARM provides various types of vertical bag packing machines, designed with single filling lane or multi filling lanes, they can complete the pouch filling and sealing processes efficiently under the stable working systems. The pouch packing machines can be applied to pack powder, liquid, lotion, ointment materials. Commonly used in food and beverage, pharmaceutical, supplementary industries, as well as manufacturing companies.

POUCH FORMING, FILLING AND SEALING

YOKO-YDB Series
Multi-lane sachet filling and sealing, applied for liquid materials.

YOKO-YDB multi lane stick packaging machine is used for quantitative liquid and paste packaging in the food, pharmaceutical, and personal care industries. It’s able to finish forming, filling, sealing and other processes automatically.

FEATURES

  • Producing several stick packets at the same time
  • One-stop packaging work of bag making, measuring, filling, sealing, cutting, counting, and date printing
  • Product contact components and the shell is made of stainless steel
  • PLC control system, large touch screen, easy to use
  • Automatically shutdown while no film, reduces wasting of films
  • High precision photoelectric sensor

TECHNICAL DATA & BENEFITS

Model
YOKO-180-2YDB-X
YOKO-480-4YDB-X
YOKO-480-5YDB-X
YOKO-680-4YDB-X
YOKO-680-6YDB-X
YOKO-680-8YDB-X
YOKO-1300-10YDB-X
Filling Lines
2
4
5
4
6
8
10
Bag Size (mm)
W: 20-60
W: 20-70
L: 30-180
W: 20-70
L: 30-180
W: 20-70
L: 30-180
W: 20-80
L: 30-260
W: 20-60
L: 30-180
W: 20-80
L: 30-160
W: 20-60
Max Width of Roll Film (mm)
180
480
480
680
680
680
1300
Packing Speed (bags/hr)
2400-6000
4800-12000
4800-12000
6000-8400
12600
9600-24000
18000-30000
Air Consumption (MPa)
0.6-0.8
0.6-0.8
0.6-0.8
0.6-0.8
0.6-0.8
0.6-0.8
0.6-0.8
Power
Custom made according to customer’s request
Dimensions (L*W*H mm)
650*980*1720
616*1313*2283
616*1313*2283
1480*2050*2950
1300*1200*2450
2072*1924*3627
1300*1200*2450
Weight (kg)
450
950
950
1300
750
1800
750

APPLICATION
  • Sauce
  • Oil
  • Paste
  • Cream
