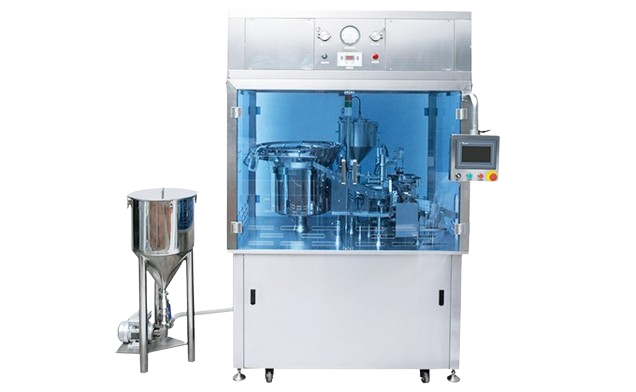

YOKO-YGFP-K Automatic Plastic Prefilled Syringes Filling Line

YOKO BIOPHARM

Prefilled Syringe Filling Machine YOKO BIOPHARM prefilled syringe filling machines are equipped with intelligent detection devices, uses ceramic plunger pumps to achieve quantitative filling, and is designed to meet medical standards. From our automatic prefilled syringe fillers to semi-automatic solutions, we have the machines to meet your most stringent requirements.

AUTOMATIC

YOKO-YGFP Series

High speed automatic prefilled syringe vacuum filling and stoppering, apply for medium scale production.

YOKO-YGFP-K PFS filling line for plastic prefilled syringes is specially designed by YOKO BIOPHARM, which is designed as a stand-alone machine or connected to other machine to form a production group.

FEATURES

PLC control system

Made of SUS304 & SUS316L stainless steel material, meets GMP requirements

Adopts internationally renowned electrical components and implements interference-free modular control

Fully automatic operation: feeding, filling, cap arranging and automatic capping

Optional automatic replenishment system, using liquid level sensing, automatic replenishment when lack of material

Widely applicable to various types of prefilled plastic syringes, and special types of syringes can also be customized

TECHNICAL DATA & Benefits

Model	YOKO-1YGFP-K	YOKO-2YGFP-K
Applicable Materials	liquid and ointment
Applicable Syringe Specifications (ml)	0.5-80	0.5-50
Filling Heads	1	2
Capping Heads	1	2
Filling Accuracy	≤±1-2%	≤±1%
Production Capacity (pcs/hr)	1800-2700	4200-4500
Power Supply	Custom made according to customer’s request
Compressed Air	0.55-0.75MPa 20L/S
Weight (kg)	500	2000
Overall dimensions (L x W x H mm)	2308501800	365013001800
