YOKO BIOPHARM
Visual Tablet Inspection Machine
YOKO BIOPHARM visual tablet inspection machine can comprehensively inspect the appearance quality of various conventional tablets, sustained-release tablets, and irregularly shaped tablets, accurately identifying defects such as color deviations, stains, black spots, cracks, and breakage. Our pharmaceutical tablet inspecting machine utilizes multi-dimensional optical imaging and intelligent algorithms for automatic detection, ensuring 360° inspection for accurate identification and simultaneous rejection of defective products. It is suitable for continuous tablet production lines, effectively guaranteeing stable and controllable tablet quality.
Automatic Tablet Inspection
YOKO-YPJ Series
YOKO-YPJ Series stands as a stable inspection machine for tablet pills, such as standard tablets, oval tablets, and controlled-release tablets. Adopts 2D/3D high-definition vision system to detect appearance, shape, size, and color, enabling precise defect detection and rejection.

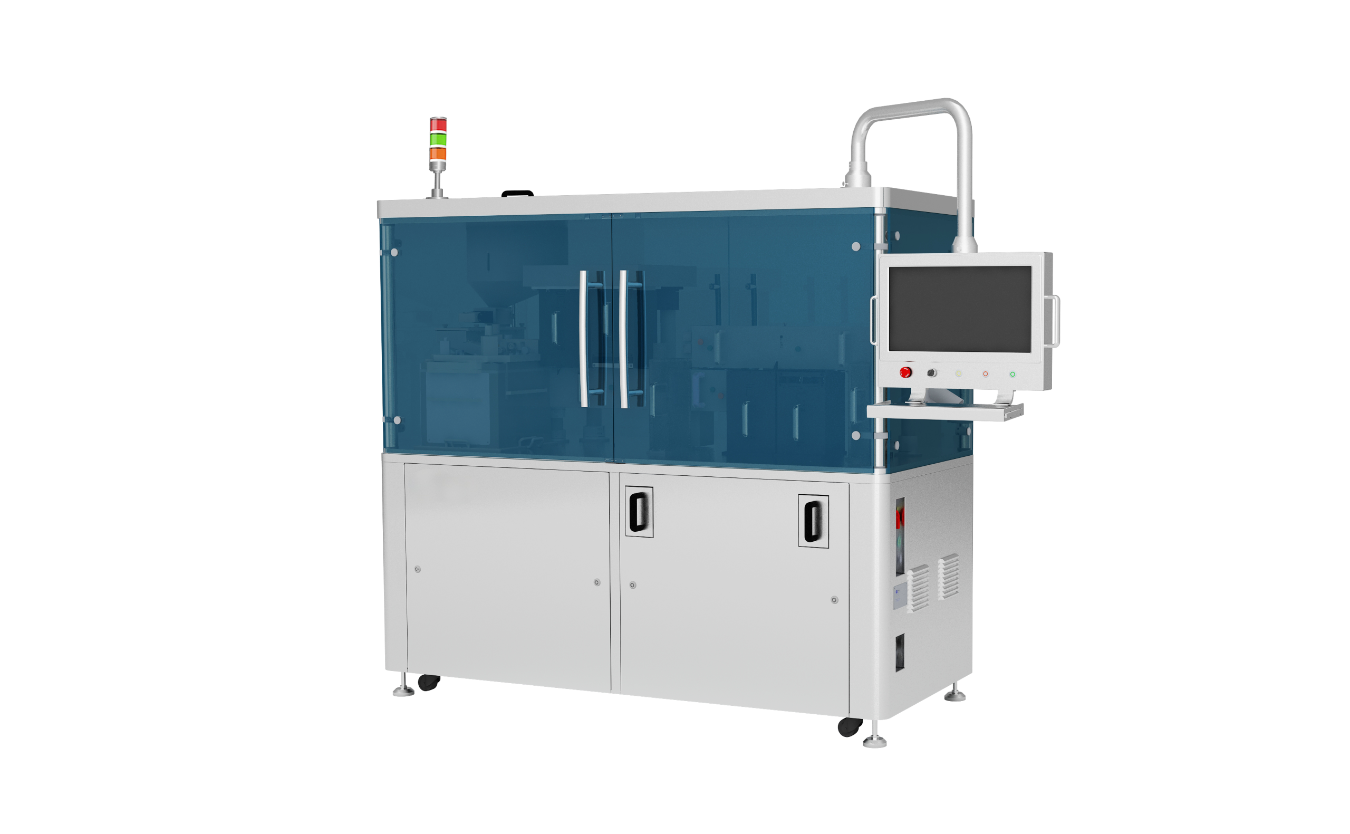

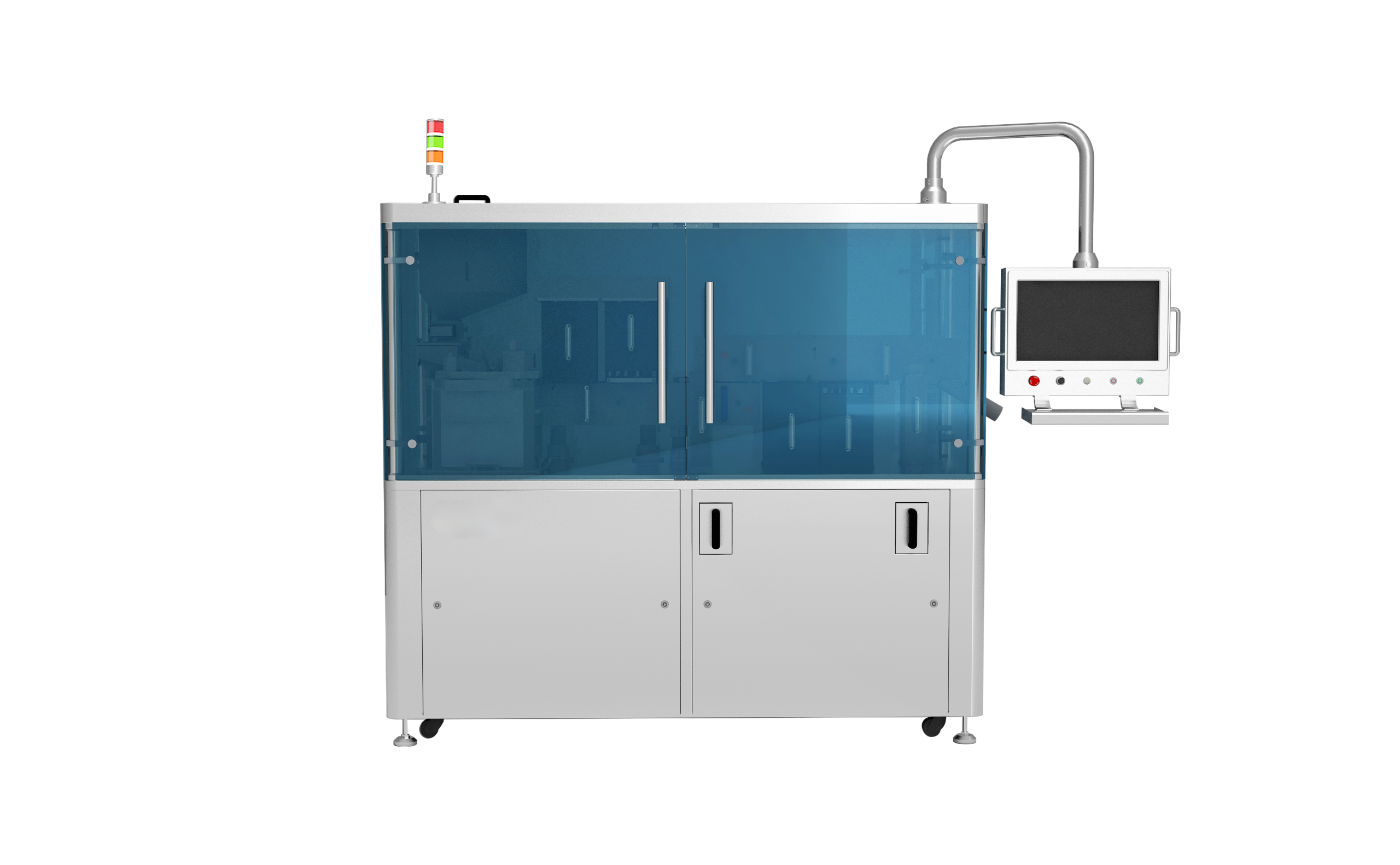

YOKO-YPJ-B tablet inspection machine utilizes advanced optical imaging technology, automated control systems, and reliable core algorithms to provide accurate and consistent results. Designed for inspecting round, oval, and controlled-release tablets, it ensures comprehensive detection of defects, offering a 360° inspection of appearance, shape, size, and color for precise quality control.
Features of YOKO-YPJ-B Tablet Vision Inspection Machine
- GMP-Compliant: Guaranteed quality and regulatory adherence
- Modular Build: Rapid maintenance and easy cleaning
- Industrial Grade: Dustproof and anti-static for 24/7 reliability
- Hybrid 2D/3D Imaging: Full-spectrum defect detection
- Sirius Core: Ultra-fast, real-time inspection with rock-solid stability
- Pinpoint Rejection: Real-time tracking and individual tablet removal
- Fail-Safe Verification: Guaranteed zero-miss rejection
- Smart Analytics: Visual data tracking with multi-level access control
Perspectives Principle of YOKO-YPJ-B Tablet Vision Inspection Machine
This inspecting system employs a multi-view imaging architecture, equipped with two 3D cameras and ten 2D color cameras, covering the entire surface and sides of the tablets for blind-spot-free detection. Through eight 2D perspectives and fused 2D+3D top and bottom views, it enables comprehensive automated inspection of key quality indicators such as tablet appearance, shape, size, and color. Our tablet inspection system is compatible with various industrial cameras, features a real-time processing algorithm library, and boasts characteristics such as high detection speed, strong adaptability, and stable operation.
TECHNICAL DATA & Benefits
| |
Inspecting Speed (tablets/hr) | Standard tablets (dia. 10 mm) : 150,000 Controlled-release tablets: 96,000 |
Standard Tablet Size Range (mm) | |
Oval Tablet Size Range (mm) | Length: 5-22 Width: 5-12 Height: 2-8 |
Controlled-release tablet Size Range (mm) | Dia. 8.8-12.3 Height: 4.6-8.2 |
| |
| Custom made according to customer’s request |
| |
| |
| |
APPLICATION
• Standard Tablets
• Oval Tablets
• Controlled-release Tablets
