ProductsYOKO-YTG-Z Automatic Bottle Filler Machine for Liquids
YOKO-YTG-Z
Liquids

YOKO-YTG-Z Automatic Bottle Filler Machine for Liquids

•1-8 filling heads •Filling range 10-5000 ml •Filling speed 600-4800 bottles/hr

Contact Us
YOKO BIOPHARM
Liquid Filling Equipment
YOKO BIOPHARM oral liquid dosage equipment is designed for the production and packaging of high-quality oral liquids. We provide both automatic and semi-automatic machinery as well as bespoke solutions for particular needs.

FILLING MACHINE
YOKO-YTG Series
Use linear conveying containers for liquid filling, suitable for all types of thin and thick liquids.

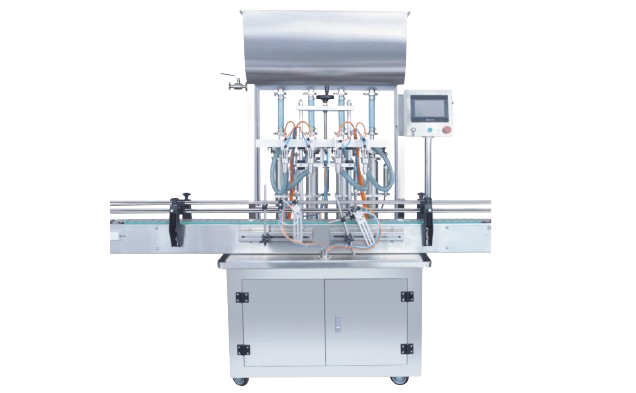

YOKO-YTG-Z automatic bottling machine is a linear working machine with filling and capping systems. Bottles are fed in a straight line, adopting cylinder positioning. Suitable for types of plastic and glass bottle filling specifications, within range of 10-5000ml or custom your required volume.

FEATURES
  • PLC controlling system
  • GMP standard requirements
  • Contact parts are made of 304 stainless steel
  • Precise filling, less foaming
  • Automatic sensoring ensures ‘no bottle no filling’
  • Customizable filling volume according to needs

TECHNICAL DATA & Benefits

Model
YOKO-1-1YTG-Z
YOKO-4YTG-Z
YOKO-4-1YTG-Z
YOKO-8YTG-Z
Filling Head
1
4
4
8
Filling Range (ml/bottle)
custom
10-5000
10-100
25-60
Filling Speed (bottles/hr)
600-1200
800-1200
2400
4800
Voltage
Custom made according to customer’s request
Filling Accuracy
±2%
±1%
±1%
±1%
Dimension (mm)
1500*1300*1800
/
2600*1100*1700
/

APPLICATION
•Syrup Oral Liquid
•Pet Oral Suspension
•Liquid Vitamin
•Energy Drink
