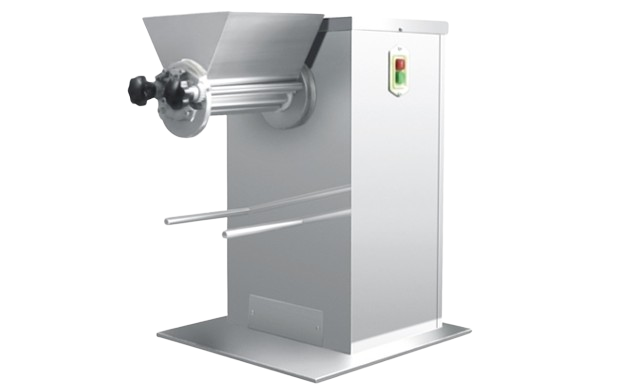

YOKO-YZ-A Dry and Wet Oscillating Granulating Machine

YOKO BIOPHARM

Granulating Machine

YOKO BIOPHARM granulating machine is a specialized apparatus utilized across diverse sectors such as pharmaceuticals, chemicals, food processing, and agriculture. Its primary function is to transform powder or solid substances into granules or pellets. These machines are crucial for enhancing material flowability, handling, and dosage precision, while also facilitating control over particle size and morphology.

SWING GRANULATION

YOKO-YZ Series

YOKO-YZ Series are equipped with the swing arm, mixing and granulation of the powder materials by oscillating back and forth.

YOKO-YZ-A oscillating granulator is used for making wet powder material particles, as well as crushing the blocked raw material into small granule quickly. The material movement is controlled by the screen and the rotor gap and squeezes the pellets, which can produce pellets of various specifications.

FEATURES

According to the requirements of GMP

The structure is designed with convenient installation, cleaning and use

The contact part is made of high-quality stainless steel

Adjustable speed of the rotating heptagon roller

Each component particle manufacturing device is completely sealed

Adopts screen clamp to ensure that the screen does not cling to the drum

Customizable screen sieve size

TECHNICAL DATA & Benefits

Model	YOKO-50YZ-A	YOKO-200YZ-A	YOKO-250YZ-A
Capacity (kg/hr)	10-50	200	200-250
Swing Angle	360°	360°	360°
Roller Diameter (mm)	60	200	200
Roller Speed (rpm)	65	65	65
Motor Power (kW)	Custom made according to customer’s request
Weight (kg)	200	450	450

APPLICATION

•Pharmaceuticals

•Agrochemicals

•Detergents

•Multi-vitamins
