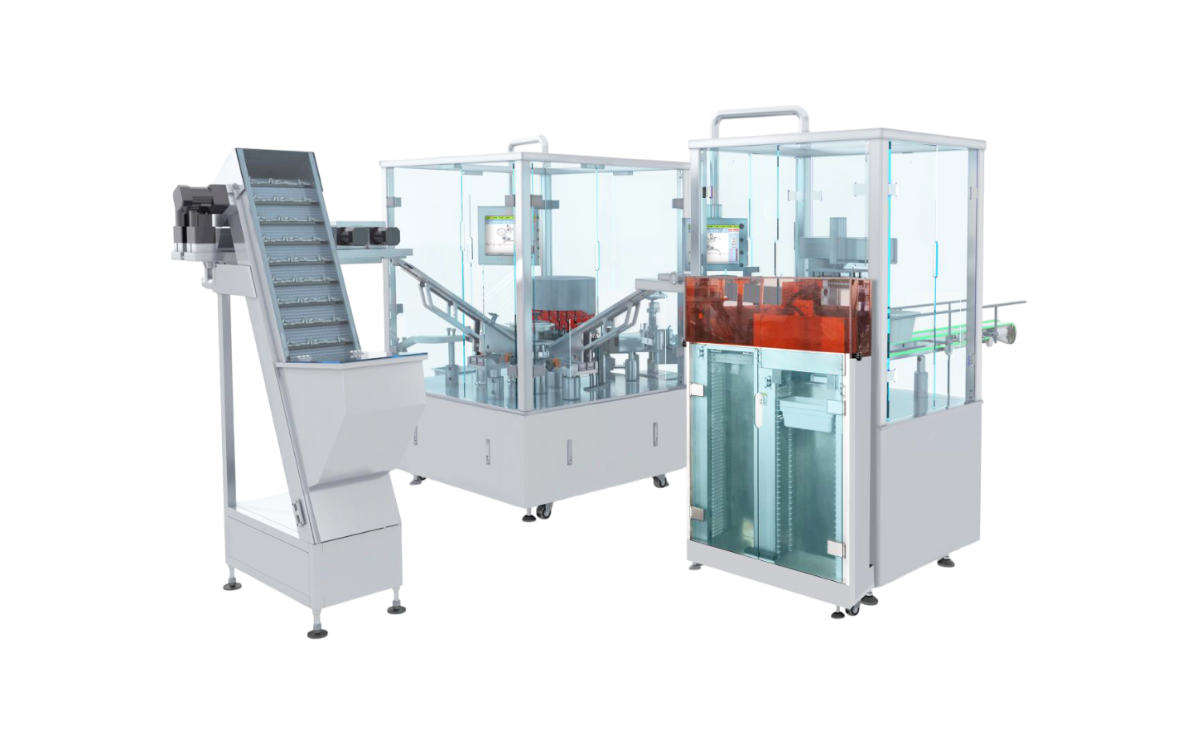

YOKO-ZSTJ-C Automatic Syringe Labeller with Bar Twisting

YOKO BIOPHARM

Prefilled Syringe Filling Machine YOKO BIOPHARM prefilled syringe filling machines are equipped with intelligent detection devices, uses ceramic plunger pumps to achieve quantitative filling, and is designed to meet medical standards. From our automatic prefilled syringe fillers to semi-automatic solutions, we have the machines to meet your most stringent requirements.

AUTOMATIC

YOKO-ZSTJ Series

Designed for prefilled syringe labeling with bar twisting function.

YOKO-ZSTJ-C Automatic syringe labeller is designed for vatious sringes, functioning with bar twisting, able to finish 12,000 pcs per hour. The steps of needle tube unnesting, bar sending and twisting, labeling, etc. are completed simultaneously. Optional printing methods including inkjet, coding and laser coding.

FEATURES

Double-layer feeding design

Equipped with elastic buffer anti-shatter device

Electric eye automatic detection for labeling

Air duct auxiliary material conveying

Servo torque motor control

Secondary automatic rejection of unqualified products

TECHNICAL DATA & Benefits

Model	YOKO-200ZSTJ-C
Labeling Speed (pcs/hr)	12000
Labeling Accuracy	±0.5mm
Syringe Size	1-10ml dia.6－20mm
Label Size (mm)	L: 15－100 W: 10－80
Air Source (MPa)	0.6
Dimensions (mm)	Centrifuge: 150011002300 Main machine: 250023502300
